Triad Chassis Mount Quick Pack⢠Power Transformers
Triad Chassis Mount Quick Pack⢠Power Transformers
SKU:POW-abc708
Compact and efficient power transformers offering reduced size, weight, and reliable performance for diverse applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Triad Chassis Mount Quick Pack⢠Power Transformers
$89.99
Quantity: 1
Claim Your Seller Account
Triad Chassis Mount Quick Pack⢠Power Transformers
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triad Chassis Mount Quick Pack⢠Power Transformers are designed for efficiency and compactness, offering a significant reduction in size and weight without compromising on performance. With a robust construction and bobbin wound design, these transformers ensure reliable operation in a wide range of applications. The split bobbin nonconcentric winding reduces the need for costly electrostatic shielding, while the termination options cater to quick connects or soldering, making installations hassle-free and efficient.
Product Specifications
Specifications Dimension A
2 11/16 in
Specifications Dimension B
1 1/16 in
Specifications Electrical Rating
56.0 V·A
Specifications Height H
2 1/4 in
Specifications Length L
3 11/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
3 1/8 in
Specifications Output Rating
56.0 V CT at 1.0 A
Specifications Primary Frequency
50 Hz | 60 Hz

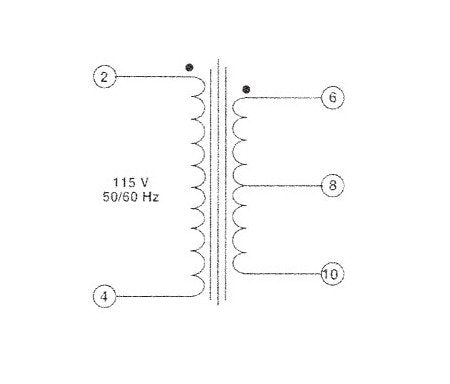

Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.70 lb
Specifications Width W
1 13/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
