Triad Class-2 Power Control Transformers
Triad Class-2 Power Control Transformers
SKU:POW-765227
Get Triad Class-2 Power Control Transformers for safe and easy-to-mount power control solutions with 240V primary input, 24V secondary output, and maximum power of 40 VA.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Triad Class-2 Power Control Transformers
$69.99
Quantity: 1
Claim Your Seller Account
Triad Class-2 Power Control Transformers
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

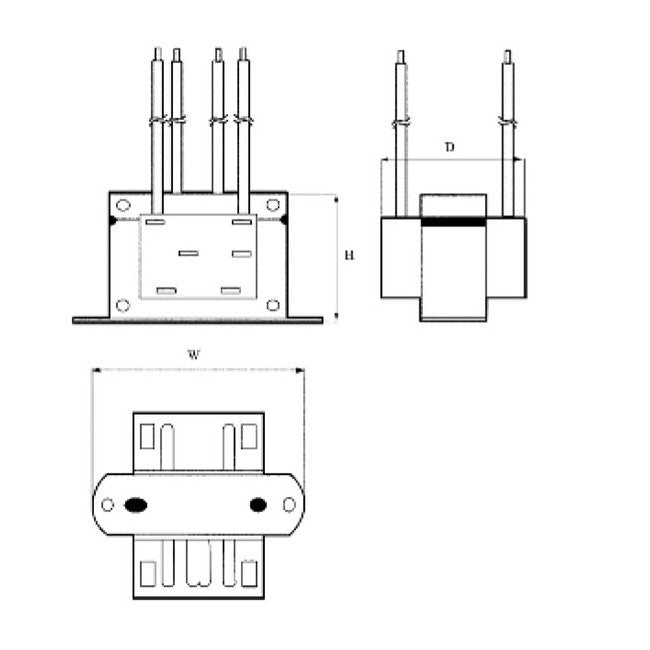

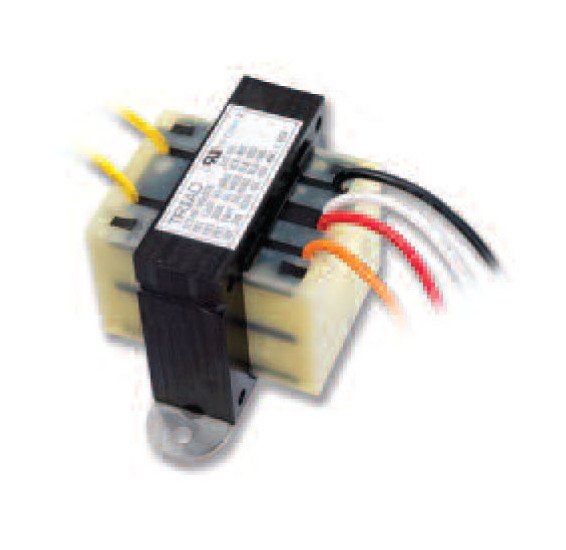

The Triad Class-2 Power Control Transformers are meticulously designed with tamper-resistant shrouds to ensure safety and feature a robust steel bracket for easy mounting. With primary input voltage of 240V and secondary output voltage of 24V, these transformers deliver a maximum power of 40 VA. Equipped with leads for connections, these transformers stand at 56.5mm (H) x 92.5mm (W) x 61mm (D) with mounting dimensions of 79.38mm. Weighing at 1.50 lb, these transformers operate seamlessly at 50Hz or 60Hz input frequency, making them ideal for various applications.
Product Specifications
Specifications Connections
Leads
Specifications Depth D
61 mm
Specifications Height H
56.5 mm
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Maximum Power
40 V·A
Specifications Mounting Dimensions
79.38 mm
Specifications Primary Input Voltage
240 V
Specifications Secondary Output Voltage
24 V
Specifications Weight
1.50 lb
Specifications Width W
92.5 mm
