Triad Class-2 Power Control Transformers
Triad Class-2 Power Control Transformers
SKU:POW-560253
Efficient, safe, and easy-to-mount Class-2 Power Control Transformers for diverse voltage requirements and compact spaces.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Triad Class-2 Power Control Transformers
$59.99
Quantity: 1
Claim Your Seller Account
Triad Class-2 Power Control Transformers
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

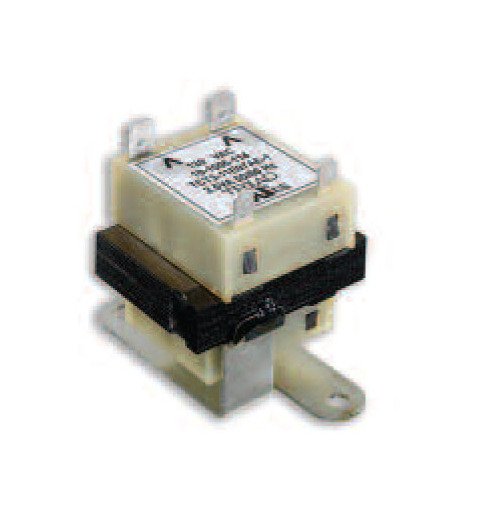

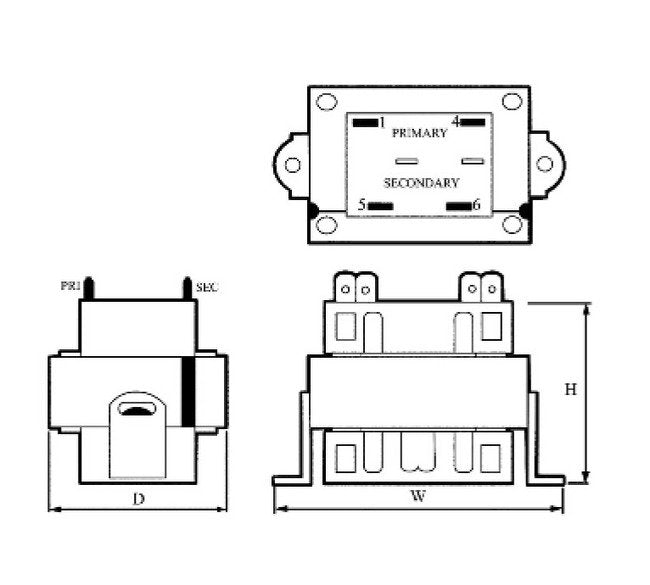

The Triad Class-2 Power Control Transformers are designed with tamper-resistant shrouds for enhanced safety and a steel bracket welded to the bottom for easy mounting. With primary input voltage options of 120V, 208V, and 240V, and a secondary output voltage of 24V, these transformers deliver a maximum power of 50 VA. Featuring lugs for connections, compact dimensions (H: 71.5mm, W: 95.0mm, D: 57mm), and a mounting dimension of 79.38mm, they are versatile and space-efficient. Suitable for use with input frequencies of 50Hz and 60Hz, weighing only 2.00 lb, these transformers combine efficiency and convenience for a wide range of applications.
Product Specifications
Specifications Connections
Lugs
Specifications Depth D
57 mm
Specifications Height H
71.5 mm
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Maximum Power
50 V·A
Specifications Mounting Dimensions
79.38 mm
Specifications Primary Input Voltage
120 V | 208 V | 240 V
Specifications Secondary Output Voltage
24 V
Specifications Weight
2.00 lb
Specifications Width W
95.0 mm
