Triad CST Series Low Frequency Current Sense Transformers
$34.99
Quantity: 1
Claim Your Seller Account
Triad CST Series Low Frequency Current Sense Transformers
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

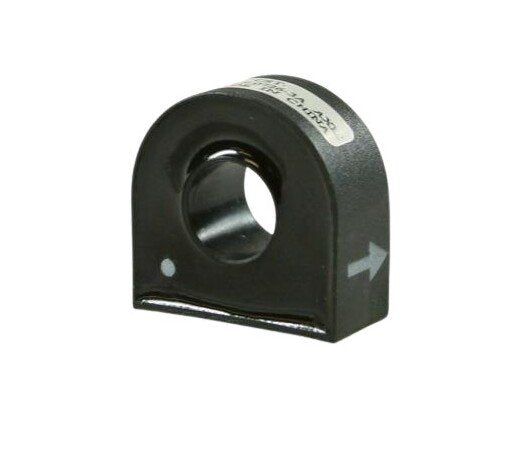

The Triad CST Series Low Frequency Current Sense Transformers are expertly designed for precise current detection in conductors. With a primary current (IP) of 25 A and a terminating resistor of 100 Ohm, these transformers ensure accurate readings. Operating from 50 to 60 Hz, they offer reliable performance meeting UL rated 130 °C materials construction standards. With an overall turn ratio of 1000:1 and primary to secondary isolation of 4000VAC, these transformers guarantee both accuracy and safety. Ideal for a wide range of applications, these transformers are a dependable choice for your current sensing needs.
Product Specifications

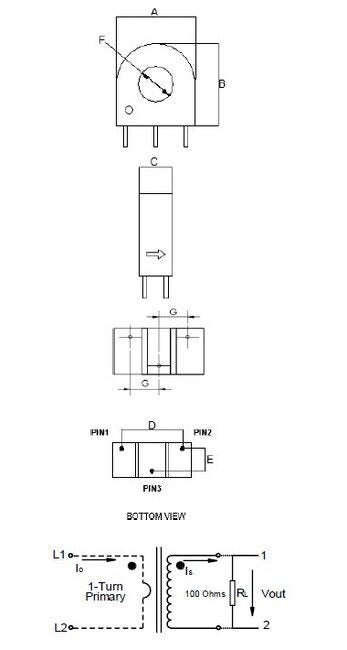

Specifications Case Dimension A
30.20 mm
Specifications Case Dimension B
30.20 mm
Specifications Case Dimension C
14.30 mm
Specifications Case Dimension D
20.32 mm
Specifications Case Dimension E
10.16 mm
Specifications Case Dimension F
11.40 mm
Specifications Case Dimension G
10.16 mm
Specifications Electical Load At Rated Primary Current Ip 100
0.0976 V·A
Specifications Nominal Dcr
46.00 Ohm
Specifications Overall Turn Ratio
1000:1
Specifications Primary Current Ip
25 A
Specifications Reference Net Weight
30.0 g
Specifications Terminating Resistor
100 Ohm | 0.0630 W
Specifications Ul Rated Material Temperature
130 ºC
Technical Notes 0

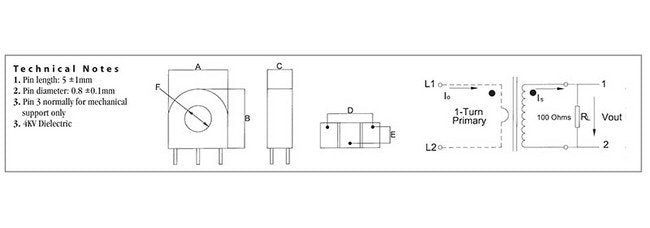

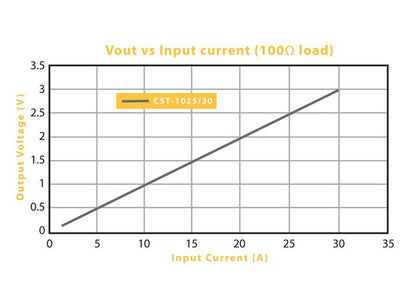

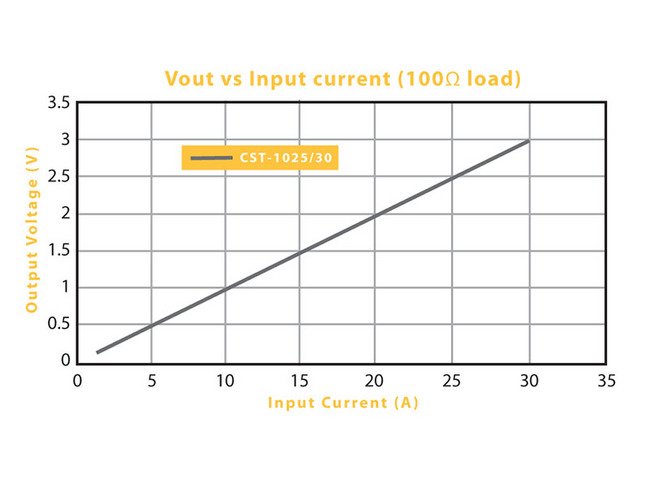

Pin3 for mechanical support only.Pin diameter: 0.8±0.1 mm.Pin length: 5±1mm.Primary to secondary isolation: 4000VAC, 60HzOperating Temperature: -10°C to +65°CStorage Temperature: -25 to 85°CAccuracy Class: 5% from 3Arms - 30Arms with 100O burden.Burden value can be reduced to increase current capability above30Arms. Adjust burden value inversely proportional to input current.
