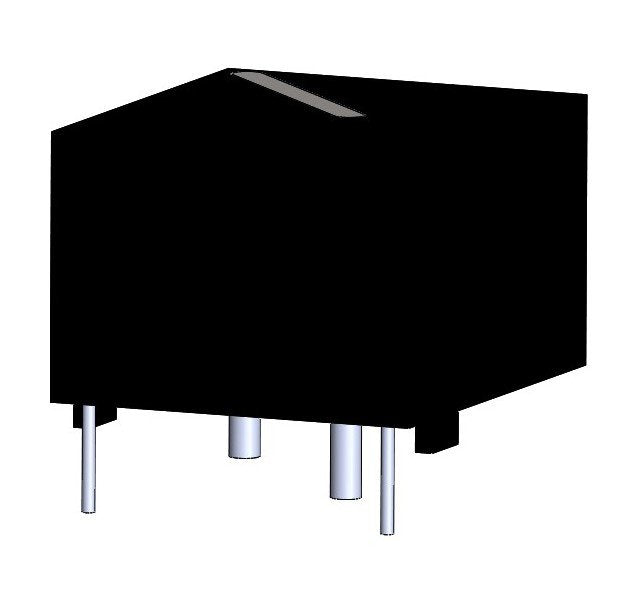

The Triad CST25 Series Current Sense Transformer is designed for precise current monitoring in high-frequency applications like switch-mode power supplies and LED lighting. Featuring a built-in sense winding for user convenience, these transformers ensure accurate monitoring with a maximum secondary DCR of 50.0 Ohm. Fully encapsulated for high isolation (4000 VAC) between windings, this series offers a wide operating frequency range (50 to 500 kHz) and an exceptional overall turn ratio of 1:1000. Rated for 300 VAC and an inductance range from 4.7 mH to 1900 mH, these transformers operate efficiently in a temperature range of -40ºC to +125ºC.
Product Specifications
Specifications Built In Primary
Yes
Specifications Dcrsec Max
50.0 Ohm
Specifications Et Max
3500 VµSEC
Specifications Inductancesec Mh Min
1900 mH
Specifications Operating Frequency
50 to 500 kHz

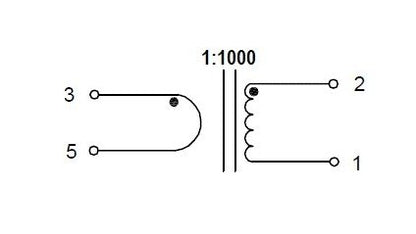

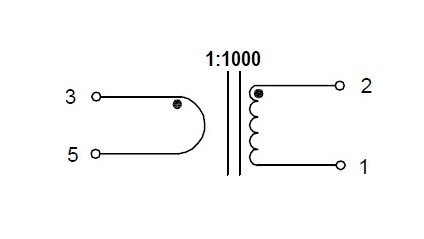

Specifications Overall Turn Ratio
1:1000
Specifications Pri Currentamps Max
25 A
Technical Notes Technical Notes
Rated Voltage: 300 VAC Rated Inductance (LR): Measured at 10 kHz, 0.01 V, 20ºC Inductance Range: Available from 4.7 mH to 1900 mH Operating Temperature: -40ºC to +125ºCRated current to cause approximately 40ºC temperature rise.
