Triad CST25 Series Current Sense Transformer, 16.0 Ohm Max DCR
Triad CST25 Series Current Sense Transformer, 16.0 Ohm Max DCR
SKU:CUR-5caa4c
High-performance current sense transformer for precise monitoring in high-frequency applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Triad CST25 Series Current Sense Transformer, 16.0 Ohm Max DCR
$39.99
Quantity: 1
Claim Your Seller Account
Triad CST25 Series Current Sense Transformer, 16.0 Ohm Max DCR
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

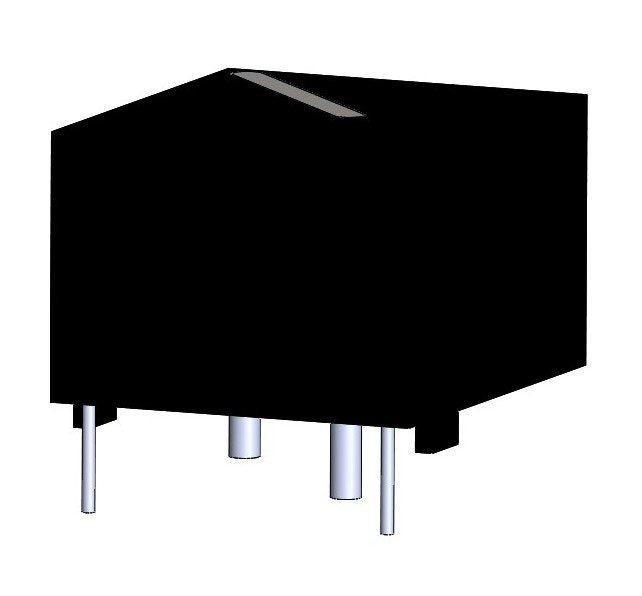

The Triad CST25 Series Current Sense Transformer is designed for high-frequency applications like switch-mode power supplies and LED lighting. With a built-in sense winding for convenience, it offers a high isolation of 4000 VAC between primary and secondary windings. Operating at frequencies of 50 to 500 kHz, this fully encapsulated transformer has a primary current capacity of 25 Amps and an overall turn ratio of 1:500. Rated for a maximum secondary DCR of 16.0 Ohm, its inductance ranges from 470 mH to 1900 mH, making it versatile for various electrical monitoring needs.
Product Specifications
Specifications Built In Primary
Yes
Specifications Dcrsec Max
16.0 Ohm
Specifications Et Max
1750 VµSEC
Specifications Inductancesec Mh Min
470 mH
Specifications Operating Frequency
50 to 500 kHz

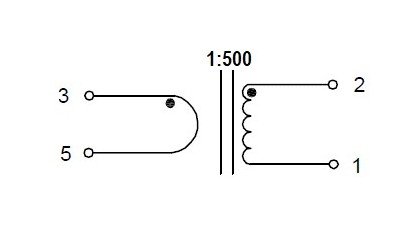

Specifications Overall Turn Ratio
1:500
Specifications Pri Currentamps Max
25 A
Technical Notes Technical Notes
Rated Voltage: 300 VAC Rated Inductance (LR): Measured at 10 kHz, 0.01 V, 20ºC Inductance Range: Available from 4.7 mH to 1900 mH Operating Temperature: -40ºC to +125ºCRated current to cause approximately 40ºC temperature rise.
