Triad CST25 Series Current Sense Transformer - DCR 2.0 Ohm, Max. Secondary Current
Triad CST25 Series Current Sense Transformer - DCR 2.0 Ohm, Max. Secondary Current
SKU:CUR-b9834d
Monitor currents with precision using Triad CST25 Series 2.0 Ohm DCR Current Sense Transformer. Built-in winding and high isolation design for optimal performance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Triad CST25 Series Current Sense Transformer - DCR 2.0 Ohm, Max. Secondary Current
$39.99
Quantity: 1
Claim Your Seller Account
Triad CST25 Series Current Sense Transformer - DCR 2.0 Ohm, Max. Secondary Current
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

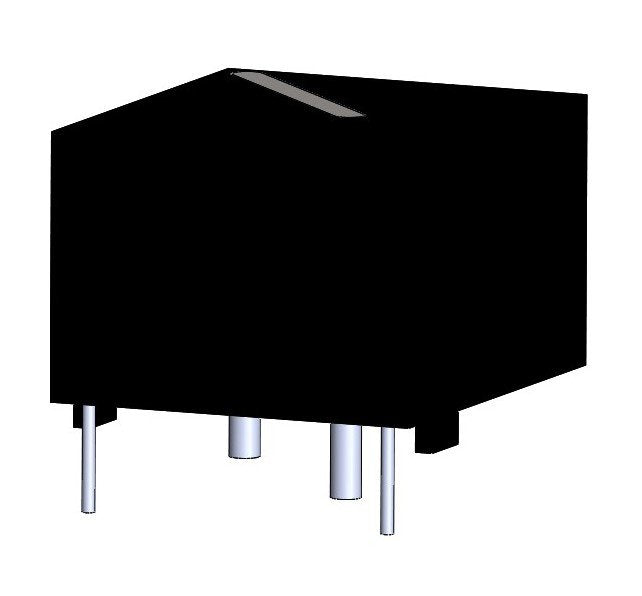

The Triad CST25 Series 2.0 Ohm Max. Secondary DCR Current Sense Transformer is a cutting-edge solution for monitoring currents in high-frequency applications like switch-mode power supplies and LED lighting. Designed with a built-in sense winding for user convenience, these transformers offer a fully encapsulated design ensuring high isolation of 4000 VAC between primary and secondary windings. With an inductance of 18.0 mH, maximum primary current of 25 A, and operating frequency range of 50 to 500 kHz, these transformers provide reliable and efficient current sensing capabilities.
Product Specifications
Specifications Built In Primary
Yes
Specifications Dcrsec Max
2.0 Ohm
Specifications Et Max
350 VµSEC
Specifications Inductancesec Mh Min
18.0 mH
Specifications Operating Frequency
50 to 500 kHz

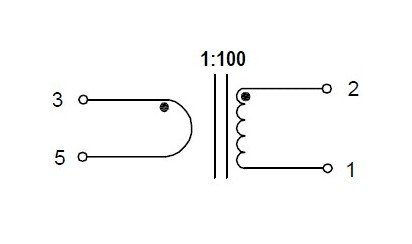

Specifications Overall Turn Ratio
1:100
Specifications Pri Currentamps Max
25 A
Technical Notes Technical Notes
Rated Voltage: 300 VAC Rated Inductance (LR): Measured at 10 kHz, 0.01 V, 20ºC Inductance Range: Available from 4.7 mH to 1900 mH Operating Temperature: -40ºC to +125ºCRated current to cause approximately 40ºC temperature rise.
