Triad E-Core Common Mode Inductor
Triad E-Core Common Mode Inductor
SKU:IND-cf00d2
Reduce EMI with Triad CME Series Inductors. Meets strict regulatory standards. Ideal for power supplies.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Triad E-Core Common Mode Inductor
$29.99
Quantity: 1
Claim Your Seller Account
Triad E-Core Common Mode Inductor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

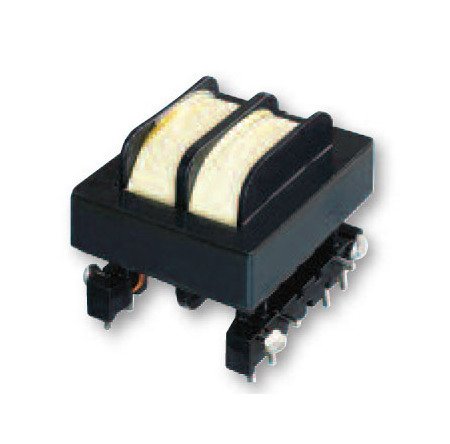

The Triad CME Series Common Mode Inductors are reliable solutions for EMI suppression in various power supplies, eliminating common noise and offering effective differential mode filtering. Designed to meet stringent regulatory requirements, these compact inductors minimize AC line interference generated by high-frequency switching power supplies. With a minimum inductance of 1.05 mH and a max DC resistance of 0.050 Ohm, these UL-rated inductors are compact and efficient, ensuring optimal performance in noise reduction and interference mitigation.
Product Specifications
Note 0
A CME2425-KIT is available which includes each one of the components in section B.

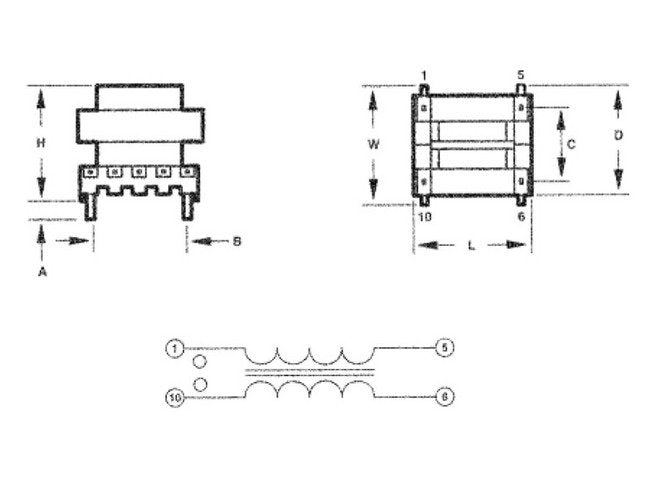

Specifications Dimension A
0.125 in
Specifications Dimension B
0.800 in
Specifications Dimension C
0.610 in
Specifications Dimension D
0.029 in²
Specifications Dimension H
1.075 in
Specifications Dimension L
1.050 in
Specifications Dimension W
1.050 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.050 Ohm
Specifications Min Inductance
1.05 mH
Specifications Min Leakage
9.0 µH
Specifications Rms Current
2.50 A
Specifications Weight
0.154 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
