Triad EuroSplit Power Transformers

Triad EuroSplit Power Transformers

SKU:POW-7461cc

Experience superior power distribution with Triad EuroSplit Power Transformers. From 5 to 56 VA ratings, 115 V / 230 V primary windings, and impeccable safety standards compliance.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Triad EuroSplit Power Transformers

Triad EuroSplit Power Transformers

$49.99

Quantity: 1

Claim Your Seller Account

Triad EuroSplit Power Transformers

Triad EuroSplit Power Transformers

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Triad EuroSplit Power Transformers from the Chassis Mount Leaded World Series™ are meticulously engineered to adhere to international safety agency standards with European style split bobbin construction. These transformers offer a wide range of VA ratings from 5 to 56 VA, 115 V / 230 V primary windings, 3,500 V isolation, and a 6 mm creepage distance primary to secondary. Featuring reduced interwinding capacitance and eliminating the need for electrostatic shielding, these transformers are versatile for both series and parallel connections, ensuring efficient power distribution for a variety of applications.

Product Specifications

Note 0

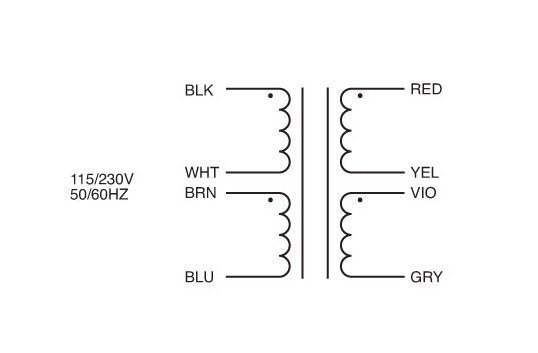

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independentlyClass 2/3 UL File: E65390, others TUV only
Specifications Case Type
X
Specifications Center Tap
N
Specifications Creepage Distance
6 mm
Specifications Depth D
2 1/8 in
Specifications Electrical Rating
25 V·A
Specifications Height H
1 15/16 in
Specifications Mounting Width
2 13/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel Connected
14.00 V | 1.790 A
Specifications Secondary Series Connected
28.0 V | 0.890 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.30 lb
Specifications Width W
3 1/4 in
Technical Notes 0
Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
