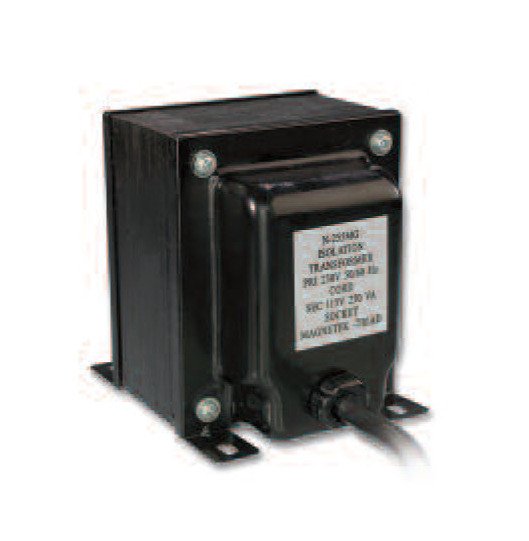

Triad Hospital Isolation Power Transformers
Triad Hospital Isolation Power Transformers
SKU:POW-db1a3a
Ensure safety and reliability with Triad Hospital Isolation Power Transformers. Designed for medical equipment, meets low leakage current requirements, and includes overload protection.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Triad Hospital Isolation Power Transformers
$249.99
Quantity: 1
Claim Your Seller Account
Triad Hospital Isolation Power Transformers
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triad Hospital Isolation Power Transformers are specially designed to isolate equipment from direct power line connections, ensuring safety and reliability. These transformers feature low leakage current construction, meeting the stringent requirements of modern medical equipment. With separate primary and secondary windings on insulated arbors, these units prevent electrical connections in any conditions. The hospital type transformers also come equipped with a resettable circuit breaker for overload and short circuit protection, providing peace of mind in healthcare settings.
Product Specifications
Specifications Case Type
M
Specifications Connections
6' Cord, Plug & Socket
Specifications Depth D
5 in
Specifications Height H
4 5/8 in
Specifications Mounting Depth
3 13/16 in
Specifications Mounting Hole Size
3/8 x 3/16 in
Specifications Mounting Width
3 in
Specifications Output Wattage Va Rating
250 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
2.170 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
11.00 lb
Specifications Width W
3 15/16 in
Technical Notes Technical Notes
Line cord, plug and receptacle are U.L. listed and verified to meet federal specifications.Connections are by leads, plugs and sockets.Hi-pot tested at 1,500 VRMS.
