Triad International Series Chassis Mount Power Transformers

Triad International Series Chassis Mount Power Transformers

POW-b03d7b

High-quality Chassis Mount Power Transformers with split bobbin design for safety and efficiency. Available in various VA sizes. Ideal for international usage.

$49.99
$49.99
Sale

Initiate Order

Triad International Series Chassis Mount Power Transformers

Triad International Series Chassis Mount Power Transformers

$49.99

Quantity: 1

Claim Your Seller Account

Triad International Series Chassis Mount Power Transformers

Triad International Series Chassis Mount Power Transformers

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Triad International Series Chassis Mount Leaded World Series™ Power Transformers are expertly constructed with European style split bobbins to meet stringent International safety agency standards. These transformers feature a split bobbin design that minimizes interwinding capacitance and eliminates the need for electrostatic shielding. Available in various sizes ranging from 5 VA to 56 VA, with 115V/230V primary windings at 50/60 Hz, the transformers ensure superior performance. With 3,500V isolation between primary and secondary windings and a 6mm creepage distance from primary to secondary, these transformers offer reliable and safe power conversion.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0

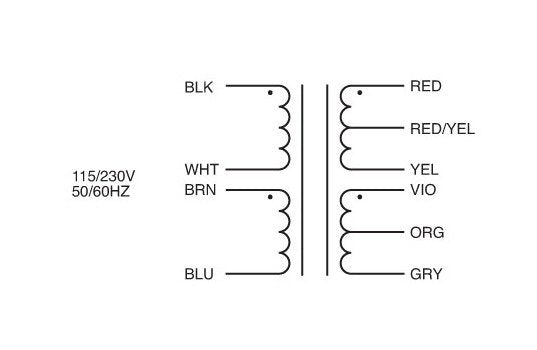

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independently
Specifications Case Type
X
Specifications Center Tap
Y
Specifications Creepage Distance
6 mm
Specifications Depth D
2 1/8 in
Specifications Electrical Rating
25 V·A
Specifications Height H
1 15/16 in
Specifications Mounting Width
2 13/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel Connected
6.30 V | 3.960 A
Specifications Secondary Series Connected
12.6 V | 1.980 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.30 lb
Specifications Width W
3 1/4 in
Technical Notes 0
Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
