Triad International Series Power Transformers
Triad International Series Power Transformers
SKU:POW-a9ca46
Reliable Triad International Series Power Transformers with European split bobbin design, versatile connectivity options, and meeting International safety standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Triad International Series Power Transformers
$39.99
Quantity: 1
Claim Your Seller Account
Triad International Series Power Transformers
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triad International Series Power Transformers feature a European split bobbin design, meeting International safety agency standards. With reduced interwinding capacitance and no need for electrostatic shielding, they offer reliable power transformation. Available in various sizes with primary windings for 115V/230V 50/60Hz, 3,500V isolation, and a 6mm creepage distance. These transformers allow Series or Parallel connections for versatile applications.
Product Specifications
Note 0

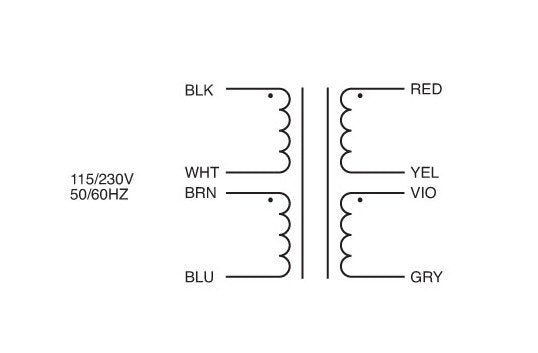

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independentlyClass 2/3 UL File: E65390, others TUV only
Specifications Case Type
X
Specifications Center Tap
N
Specifications Creepage Distance
6 mm
Specifications Depth D
1 3/4 in
Specifications Electrical Rating
10 V·A
Specifications Height H
1 3/4 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel Connected
12.00 V | 0.820 A
Specifications Secondary Series Connected
24.0 V | 0.410 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.70 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
