Triad J Series 1723 Ohm Primary DC Resistance Audio Transformer
Triad J Series 1723 Ohm Primary DC Resistance Audio Transformer
SKU:AUD-dedd7a
Enhance amplifier performance with Triad J Series Audio Transformer. Alloy shielding for 40-60 dB hum reduction, single-hole mounting for minimized hum, wide frequency response 40-15000 Hz.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Triad J Series 1723 Ohm Primary DC Resistance Audio Transformer
$49.99
Quantity: 1
Claim Your Seller Account
Triad J Series 1723 Ohm Primary DC Resistance Audio Transformer
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triad J Series Audio Transformer is designed for amplifiers requiring top-notch performance that meets or exceeds broadcast standards. Despite its economical construction, this transformer offers exceptional performance comparable to higher-priced hermetically sealed units. With a primary DC resistance of 1723 Ohm, and secondary impedance options of 150 Ohm and 600 Ohm, this transformer ensures maximum input level of 100 mW, balanced line outputs, and a wide frequency response of 40 to 15000 Hz. Its alloy shielding provides 40 to 60 dB hum reduction, while the single-hole mounting design allows for rotation to minimize hum. Ideal for single or push-pull plate applications, this transformer is lightweight, shielded against electrostatic and magnetic interference, and comes with flexible leads for easy mounting.
Product Specifications
Applications Applications
Single or Push-Pull (P-P) Plates to Balanced Line
Direct Current Dc Resistance Dc Resistance Primary
1723 Ohm
Direct Current Dc Resistance Dc Resistance Secondary
81 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Max
100 mW
Electrical Specifications At 25 Degree Celsius C Temperature Ove
5:1
Electrical Specifications At 25 Degree Celsius C Temperature Pri
15000 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Sec
150 Ohm | 600 Ohm
Features Features
Low level high fidelity.Single-hole mounting, allowing rotation for maximum hum reduction. Alloy shielding gives 40 to 60 dB hum reduction. Wide frequency ranges. Flexible leads for ease of mounting. Input units electrostatically and magnetically shielded .Lightweight. Smooth, baked enamel cases, 1-3/8" diameter, 1-3/4" above chassis . Legible circuit diagrams permanently affixed to every case.
Matching Impedance Direct Current Dc For Primary Matching Impeda
4 mA
Note Note
Static Shield
Specifications Case Dimension D
1-3/8 in
Specifications Case Dimension H
1-3/4 in
Specifications Case Type
J
Specifications Connections
Leads

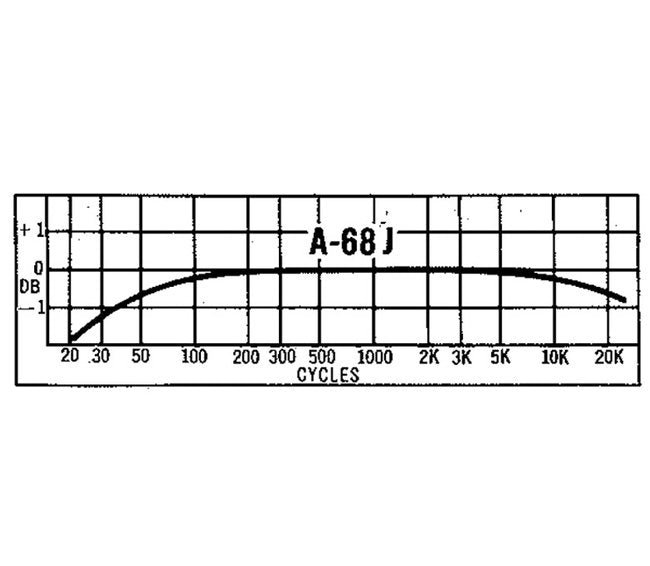

Specifications Frequency Response At 3 Db
40 to 15000
Specifications Hum Reduction
40 to 60 dB
Specifications Maximum Unit Weight
0.35 lb
Specifications Mounting Hole Diameter
3/8 in
Specifications Rms Test Voltage
500
Specifications Transformer Contact Type
Center Tap
