The Triad PC Mount Plug-In Printed Circuit Audio Transformers are meticulously designed for a wide range of audio applications, including line matching, telephone coupling, and pulse triggering. With a frequency response range of 200 to 15000 Hz, impedance matching of 10% over the frequency range, and a primary impedance of 10000 Ohm, these transformers deliver superior performance and reliability. The Plug-in terminals are intelligently spaced for easy mounting, making them ideal for various audio circuit designs. Trust Triad for exceptional audio transformer solutions that meet stringent industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Input | Interstage | Isolation | Line Matching | Output | Pulse Trigger | Telephone Coupling

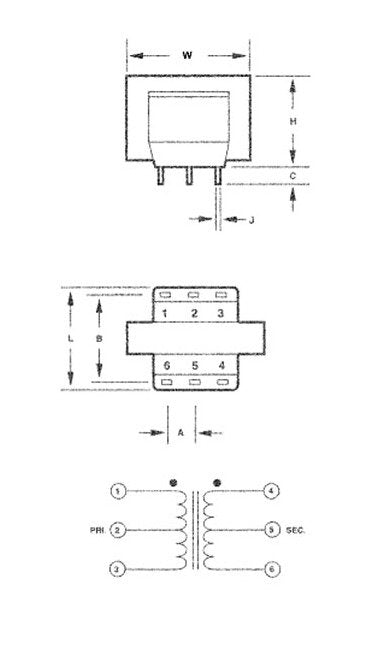

Specifications Dimension A
0.421 in
Specifications Dimension B
0.421 in
Specifications Dimension C
0.187 in
Specifications Dimension H
0.740 in
Specifications Dimension J
0.042 in
Specifications Dimension L
0.700 in
Specifications Dimension W
0.812 in
Specifications Frequency Response Range
200 to 15000 Hz
Specifications Impedance Matching
10% over Frequency Range
Specifications Maximum Input Level
100 mW
Specifications Output Power
100 mW
Specifications Primary Impedance
10000 Ohm
Specifications Primary Unbalanced Dc Current
4 mA
Specifications Secondary Impedance
2000 Ohm
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.51 oz

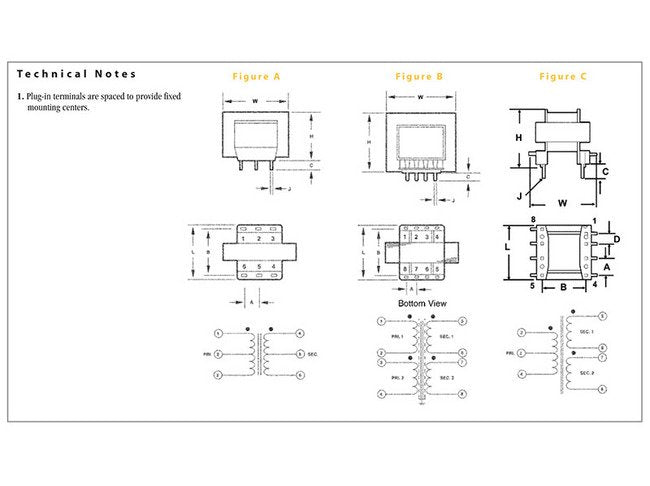

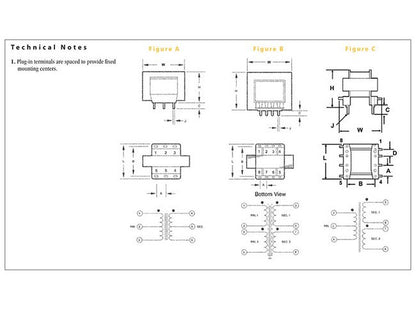

Technical Notes 0
Plug-in terminals are spaced to provide fixed mounting centers.
