Triad PC Mount Audio Transformers
Triad PC Mount Audio Transformers
SKU:AUD-07382e
Transform your audio circuit designs with Triad PC Mount Audio Transformers. High-performance for various applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Triad PC Mount Audio Transformers
$39.99
Quantity: 1
Claim Your Seller Account
Triad PC Mount Audio Transformers
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your audio circuit designs with Triad PC Mount Audio Transformers. Designed for diverse applications such as line matching, telephone coupling, and interstage use, these transformers offer exceptional frequency response (200 to 15000 Hz) and impedance matching capabilities (10% over range). With a compact size and various secondary impedance options (150 Ohm | 600 Ohm), these transformers provide reliable performance in output, isolation, and input scenarios. Plug-in terminals ensure secure mounting for seamless integration.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Input | Interstage | Isolation | Line Matching | Output | Pulse Trigger | Telephone Coupling

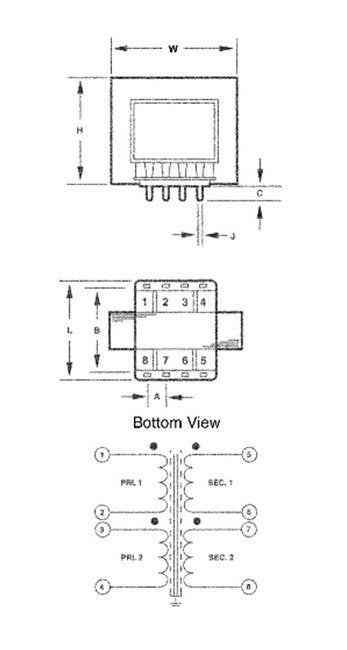

Specifications Dimension A
0.203 in
Specifications Dimension B
1.031 in
Specifications Dimension C
0.187 in
Specifications Dimension H
1.187 in
Specifications Dimension J
0.042 in
Specifications Dimension L
1.375 in
Specifications Dimension W
1.187 in
Specifications Frequency Response Range
200 to 15000 Hz
Specifications Impedance Matching
10% over Frequency Range
Specifications Maximum Input Level
1000 mW
Specifications Output Power
1000 mW
Specifications Secondary Impedance
150 Ohm | 600 Ohm
Specifications Transformer Contact Type
Center Tap | Split Secondary
Specifications Weight
3.0 oz

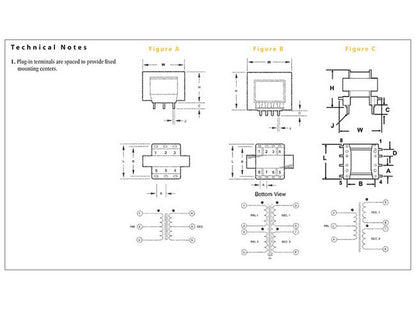

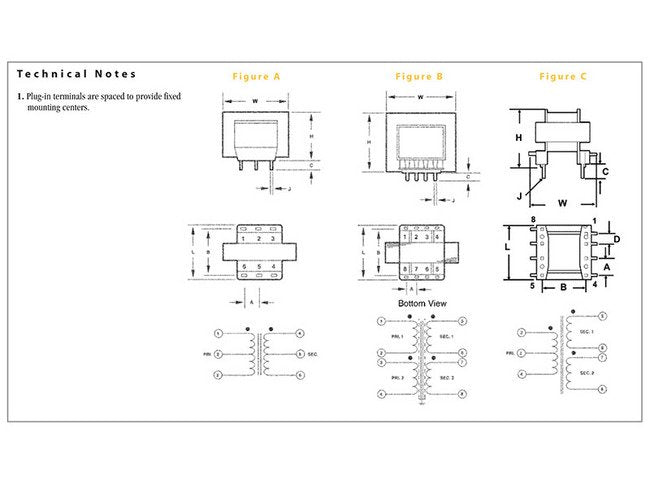

Technical Notes 0
Plug-in terminals are spaced to provide fixed mounting centers.
