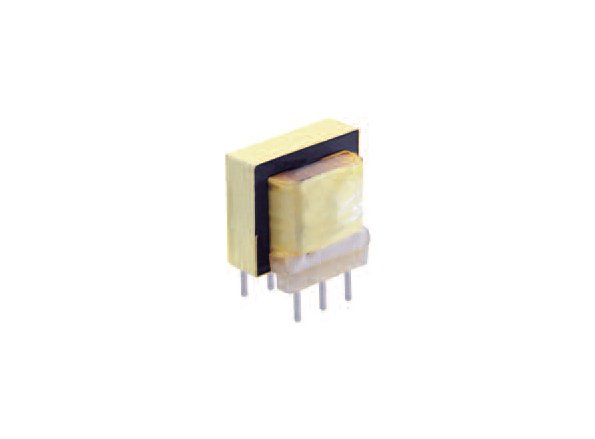

Triad PC Mount Audio Transformers
Triad PC Mount Audio Transformers
SKU:AUD-82def3
Elevate audio performance with Triad PC Mount Audio Transformers. Perfect for a range of applications. Reliable and efficient.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Triad PC Mount Audio Transformers
$49.99
Quantity: 1
Claim Your Seller Account
Triad PC Mount Audio Transformers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance audio quality in printed circuit designs with Triad PC Mount Audio Transformers. With a Frequency Response Range of 200 to 15000 Hz, Impedance Matching of 10% over Frequency Range, and Primary Impedance of 15000 Ohm, these transformers excel in applications like line matching, telephone coupling, and more. Designed for precision, efficiency, and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Input | Interstage | Isolation | Line Matching | Output | Pulse Trigger | Telephone Coupling

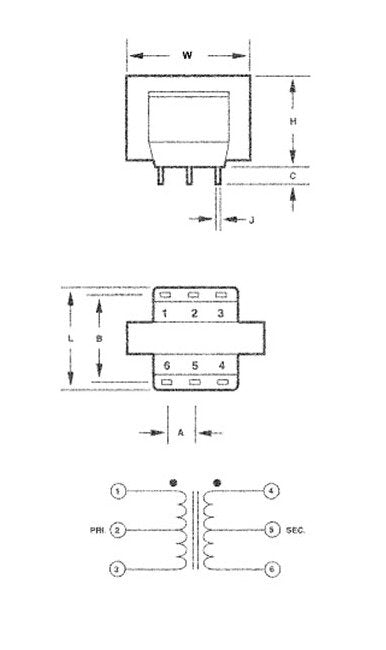

Specifications Dimension A
0.421 in
Specifications Dimension B
0.421 in
Specifications Dimension C
0.187 in
Specifications Dimension H
0.740 in
Specifications Dimension J
0.042 in
Specifications Dimension L
0.700 in
Specifications Dimension W
0.812 in
Specifications Frequency Response Range
200 to 15000 Hz
Specifications Impedance Matching
10% over Frequency Range
Specifications Maximum Input Level
100 mW
Specifications Output Power
100 mW
Specifications Primary Impedance
15000 Ohm
Specifications Primary Unbalanced Dc Current
4 mA
Specifications Secondary Impedance
15000 Ohm
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.51 oz

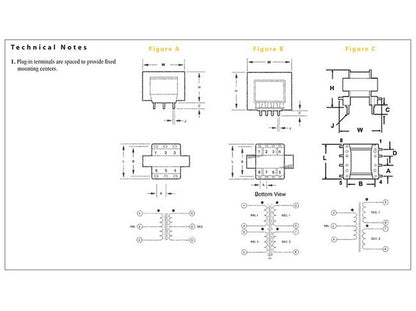

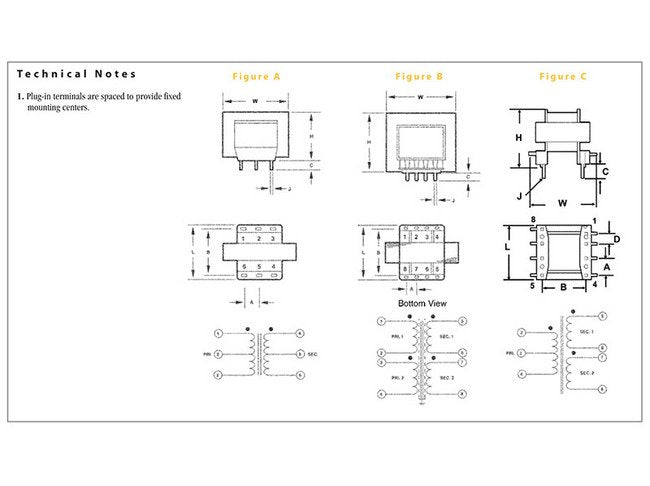

Technical Notes 0
Plug-in terminals are spaced to provide fixed mounting centers.
