Enhance your audio circuit designs with Triad's PC Mount Audio Transformers. Ideal for applications in line matching, telephone coupling, pulse trigger, and more. With a frequency response range of 20 to 20000 Hz, impedance matching within 10% over the range, and a maximum input level of 20 mW, these transformers offer exceptional performance. The plug-in design provides fixed mounting centers for easy installation. Primary impedance at 1000 Ohm and secondary impedance options at 250 Ohm or 1000 Ohm. Meet various audio industry needs with these versatile transformers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Input | Interstage | Isolation | Line Matching | Output | Pulse Trigger | Telephone Coupling
Note 0
For Secondary Impedance - 600: 600 ohm, 10 K: 10 Kohm, 100 K: 100 Kohm, 1 M: 1 Mohm, and other impedances are optional as long as input voltage is â¤4.2 Vrms and current is â¤7 mA.

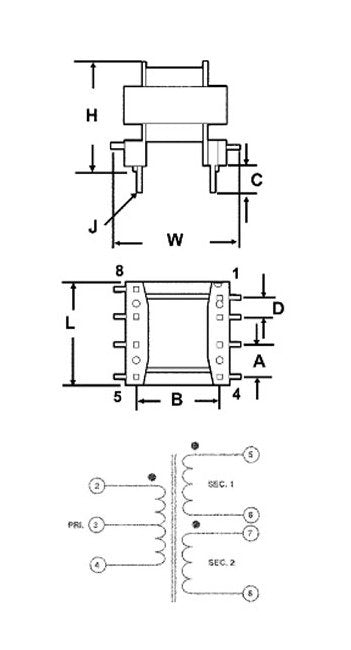

Specifications Dimension A
0.200 in
Specifications Dimension B
0.520 in
Specifications Dimension C
0.200 in
Specifications Dimension D
0.150 in
Specifications Dimension H
0.700 in
Specifications Dimension J
0.025 in
Specifications Dimension L
0.770 in
Specifications Dimension W
0.900 in
Specifications Frequency Response Range
20 to 20000 Hz
Specifications Impedance Matching
10% over Frequency Range
Specifications Maximum Input Level
20 mW
Specifications Output Power
20 mW
Specifications Primary Impedance
1000 Ohm
Specifications Primary Unbalanced Dc Current
4 mA
Specifications Secondary Impedance
250 Ohm | 1000 Ohm
Specifications Transformer Contact Type
Center Tap | Split Secondary
Specifications Weight
0.40 oz

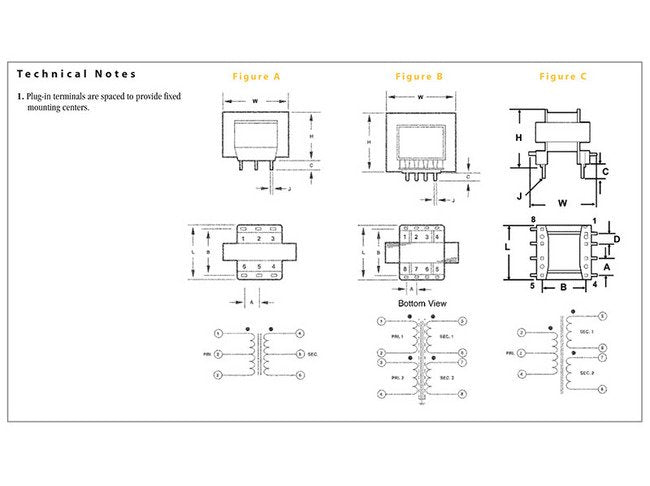

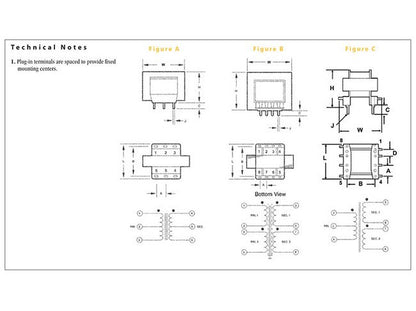

Technical Notes 0
Plug-in terminals are spaced to provide fixed mounting centers.
