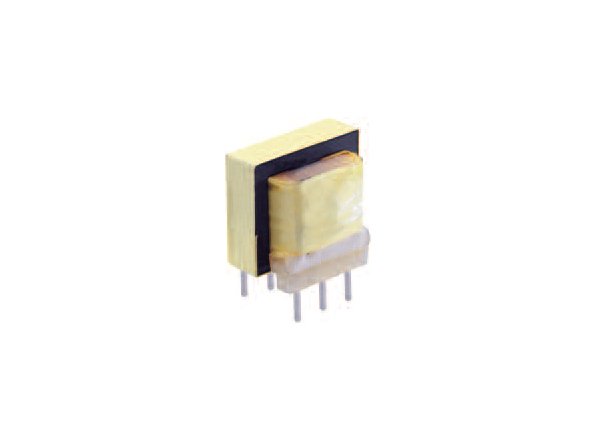

Triad PC Mount Audio Transformers

Name: Triad PC Mount Audio Transformers
Brand: Triad Magnetics
SKU: AUD-4ce31c
Price: 29.99 USD
Availability: OutOfStock

SKU:AUD-4ce31c

Versatile PC Mount Audio Transformers for reliable performance in audio applications. Frequency range: 200-15000 Hz, impedance matching: 10%, output power: 100 mW.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Triad's PC Mount Audio Transformers are versatile components designed for various audio applications like line matching, telephone coupling, and more. With a frequency response range of 200 to 15000 Hz, impedance matching of 10% over the range, and a compact design, these transformers deliver reliable performance. Perfect for printed circuit designs in the audio industry, they offer primary and secondary impedance of 10000 Ohm, and a maximum output power of 100 mW. The transformers feature center tap contact type and meet industry standards for stable performance.

Product Specifications

Applications 0

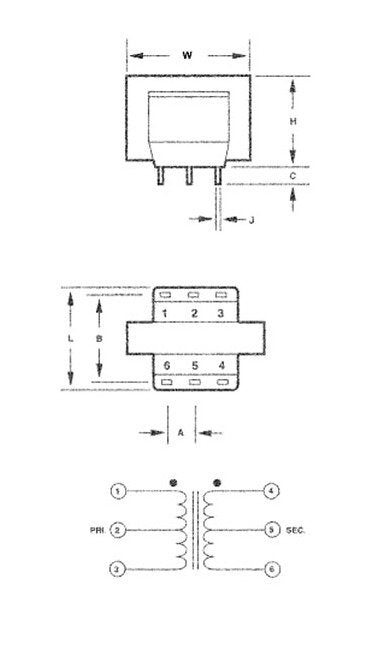

Specifications Dimension A

0.421 in

Specifications Dimension B

0.421 in

Specifications Dimension C

0.187 in

Specifications Dimension H

0.740 in

Specifications Dimension J

0.042 in

Specifications Dimension L

0.700 in

Specifications Dimension W

0.812 in

Specifications Frequency Response Range

200 to 15000 Hz

Specifications Impedance Matching

10% over Frequency Range

Specifications Maximum Input Level

100 mW

Specifications Output Power

100 mW

Specifications Primary Impedance

10000 Ohm

Specifications Primary Unbalanced Dc Current

4 mA

Specifications Secondary Impedance

10000 Ohm

Specifications Transformer Contact Type

Center Tap

Specifications Weight

0.51 oz

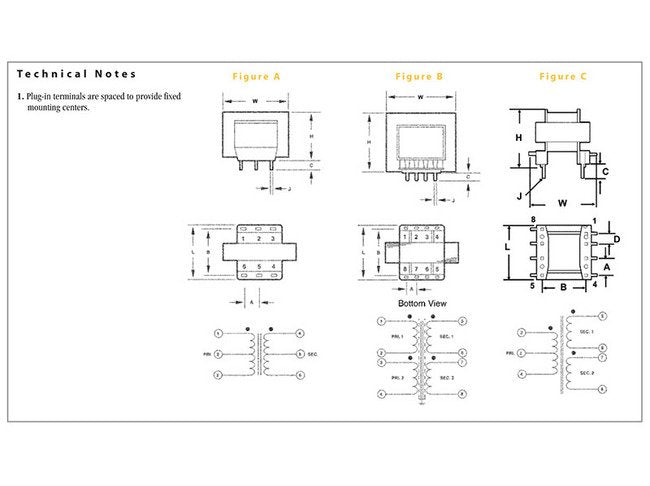

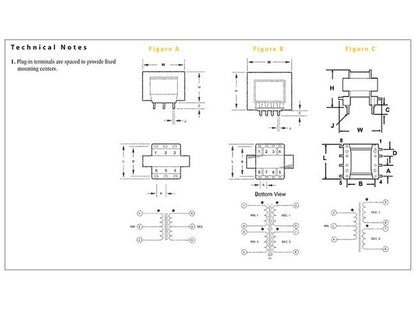

Technical Notes 0

Plug-in terminals are spaced to provide fixed mounting centers.
