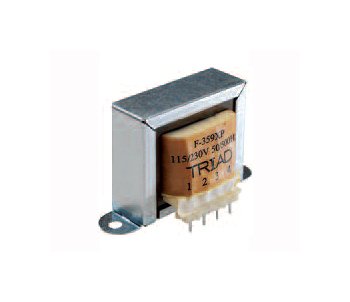

Triad PC Mount Power Transformer
Triad PC Mount Power Transformer
SKU:POW-7f4194
Versatile PC mount transformer for power and control applications. Hi-pot tested for safety.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Triad PC Mount Power Transformer
$34.99
Quantity: 1
Claim Your Seller Account
Triad PC Mount Power Transformer
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triad PC Mount Power Transformer is a versatile solution designed to meet the needs of PC board and solid-state power supply designs. With options for single or dual primary configurations and dual center-tapped secondary configurations, this transformer is suitable for power, control, and instrumentation applications. Hi-pot tested at 1,500 VRMS, this transformer guarantees reliable performance and safety.
Product Specifications

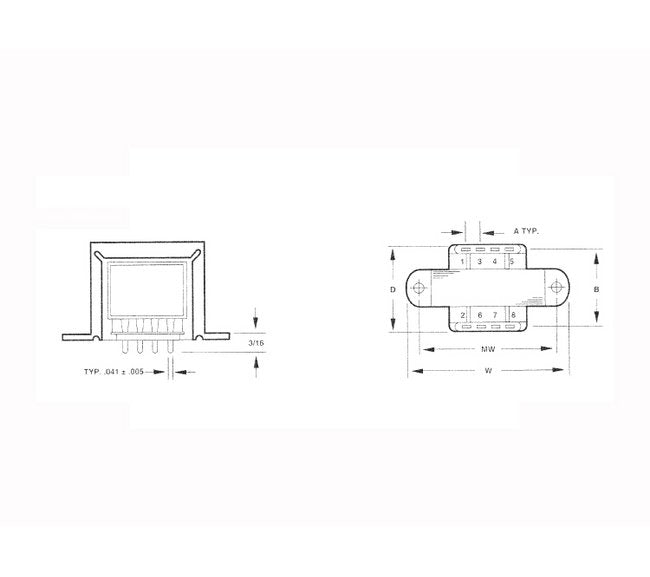

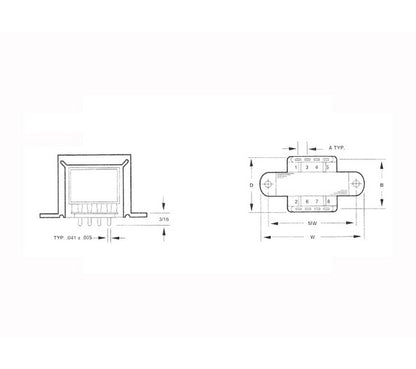

Specifications Depth D
1 15/32 in
Specifications Dimension A
1/4 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
7 1/2 V·A
Specifications Height H
1 5/8 in
Specifications Length L
1 61/64 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
15.0 V at 0.287 A
Specifications Secondary Voltage In Series
32.0 V CT at 0.100 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
10.5 oz
Specifications Width W
2 13/16 in
