Triad PC Mount Split Pack Power Transformers
Triad PC Mount Split Pack Power Transformers
SKU:POW-f87486
Versatile PC board transformers with nonconcentric windings, dual secondary configuration, and Center Tap contact type for efficient power distribution in diverse applications.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
Triad PC Mount Split Pack Power Transformers
$42.99
Quantity: 1
Claim Your Seller Account
Triad PC Mount Split Pack Power Transformers
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triad PC Mount Split Pack Power Transformers are a versatile solution for PC board applications, featuring nonconcentric windings and a split bobbin design that eliminates electrostatic shielding needs. With a dual secondary configuration, options for single or dual primaries, and a Center Tap transformer contact type, these transformers offer electrical ratings of 36.0 VA and primary voltage options of 115V or 230V. Hi-pot tested at 2,500 VRMS and designed with precise PC terminal pin spacing, these transformers provide reliable performance and easy integration. Ideal for meeting the power needs of diverse applications while ensuring efficiency and safety.
Product Specifications

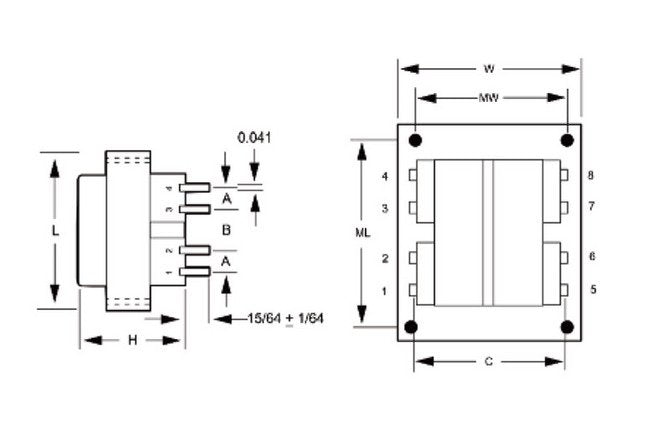

Specifications Dimension A
0.40 in
Specifications Dimension B
0.40 in
Specifications Dimension C
1.850 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1 9/16 in
Specifications Length L
2 5/8 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
6
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
18.0 V at 2.0 A
Specifications Secondary Voltage In Series
36.0 V CT at 1.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.10 lb
Specifications Width W
2 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
