Triad PC Mount Split Pack™ Class 2/3 Power Transformers

Triad PC Mount Split Pack™ Class 2/3 Power Transformers

POW-381253

Enhance your power distribution with Triad PC Mount Split Packâ„¢ Power Transformers, ideal for PC board applications with dual secondary configuration and versatile split bobbin design.

$49.99
$49.99
Sale

Initiate Order

Triad PC Mount Split Pack™ Class 2/3 Power Transformers

Triad PC Mount Split Pack™ Class 2/3 Power Transformers

$49.99

Quantity: 1

Claim Your Seller Account

Triad PC Mount Split Pack™ Class 2/3 Power Transformers

Triad PC Mount Split Pack™ Class 2/3 Power Transformers

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Triad PC Mount Split Pack™ Class 2/3 Power Transformers are designed for precise PC board applications, featuring a versatile split bobbin design that eliminates costly electrostatic shielding. With a dual secondary configuration and single or dual primaries, these transformers offer an electrical rating of 12.0 V·A and various secondary voltage options. The Hi-pot tested at 4,250 VRMS ensures safety compliance, and TUV approval further confirms the quality standards. Perfect for industrial and institutional use, these transformers provide reliable power distribution while meeting stringent procurement requirements.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0
TUV Approved

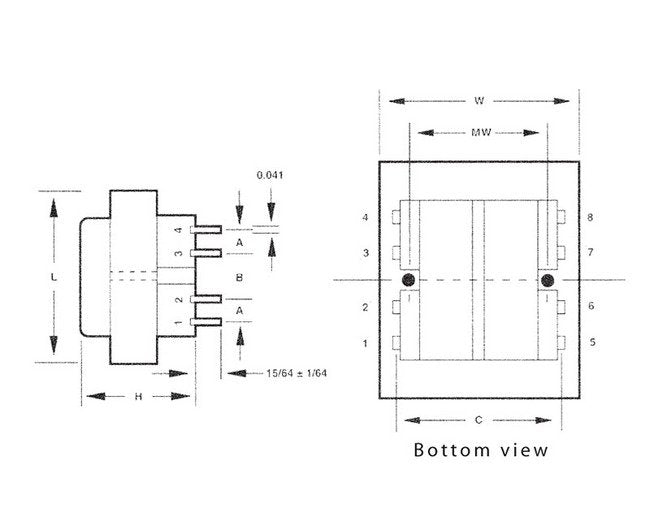

Specifications Dimension A
0.315 in
Specifications Dimension B
0.416 in
Specifications Dimension C
1.429 in
Specifications Dimension D
0.041 in
Specifications Dimension E
0.020 in
Specifications Dimension F
0.236 in
Specifications Electrical Rating
12.0 V·A
Specifications Height H
1.516 in
Specifications Length L
1.929 in
Specifications Mounting Width
1 1/4 in
Specifications Number Of Pins
8
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
8.0 V at 1.6 A
Specifications Secondary Voltage In Series
16.0 V CT at 0.8 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
0.70 lb
Specifications Width W
1.614 in
Technical Notes 0

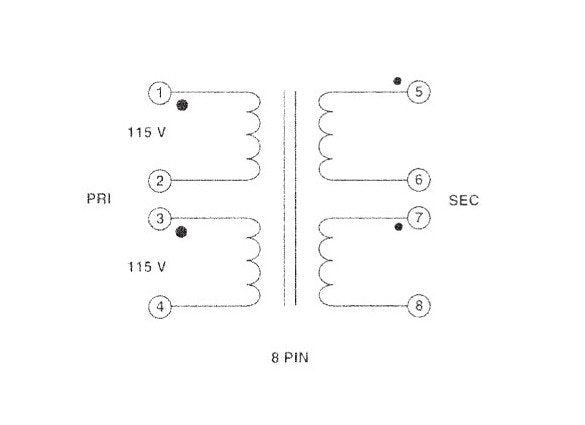

Hi-pot tested at 4,250 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
