Triad PC Mount Split Pack™ Class 2/3 Power Transformers

Triad PC Mount Split Pack™ Class 2/3 Power Transformers

POW-2faaf4

Enhance PC board power with Triad PC Mount Split Packâ„¢ Class 2/3 Transformers featuring split bobbin winding for efficient and cost-effective power supply solutions. TUV approved.

$24.99
$24.99
Sale

Initiate Order

Triad PC Mount Split Pack™ Class 2/3 Power Transformers

Triad PC Mount Split Pack™ Class 2/3 Power Transformers

$24.99

Quantity: 1

Claim Your Seller Account

Triad PC Mount Split Pack™ Class 2/3 Power Transformers

Triad PC Mount Split Pack™ Class 2/3 Power Transformers

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Triad PC Mount Split Packâ„¢ Class 2/3 Power Transformers are expertly designed for PC board applications, featuring a split bobbin winding that eliminates costly electrostatic shielding. With a dual secondary configuration, center tap transformer contact type, and multiple primary voltage and frequency options, these transformers provide reliable and efficient power supply solutions. Hi-pot tested and TUV approved, these transformers ensure safety and performance, meeting rigorous industry standards.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0
TUV Approved

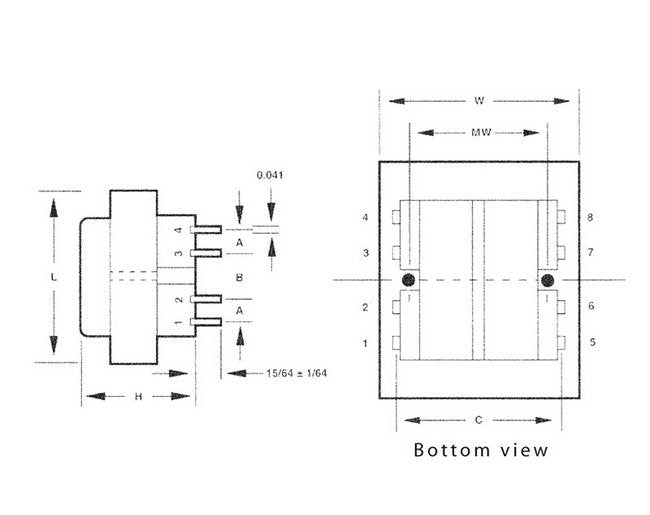

Specifications Dimension A
0.265 in
Specifications Dimension B
0.365 in
Specifications Dimension C
1.300 in
Specifications Dimension D
0.041 in
Specifications Dimension E
0.020 in
Specifications Dimension F
0.236 in
Specifications Electrical Rating
6.0 V·A
Specifications Height H
1.398 in
Specifications Length L
1.650 in
Specifications Mounting Width
1 1/16 in
Specifications Number Of Pins
8
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
10.0 V at 0.6 A
Specifications Secondary Voltage In Series
20.0 V CT at 0.3 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
0.44 lb
Specifications Width W
1.331 in
Technical Notes 0

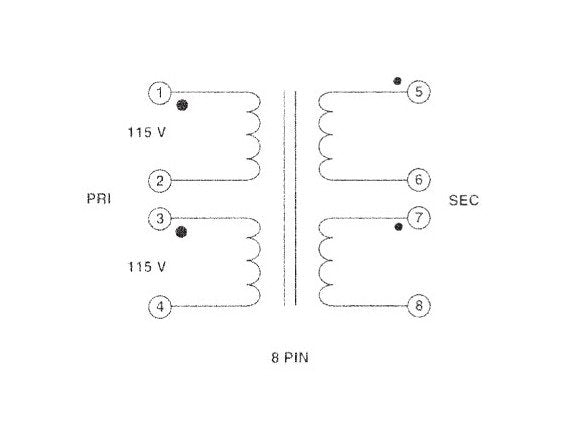

Hi-pot tested at 4,250 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
