Triad PC Mount Split Pack™ Power Transformer

Triad PC Mount Split Pack™ Power Transformer

POW-4f8804

Versatile Triad PC Mount Split Pack™ Power Transformer with dual secondary configuration and Hi-pot tested design for reliable performance.

$45.99
$45.99
Sale

Initiate Order

Triad PC Mount Split Pack™ Power Transformer

Triad PC Mount Split Pack™ Power Transformer

$45.99

Quantity: 1

Claim Your Seller Account

Triad PC Mount Split Pack™ Power Transformer

Triad PC Mount Split Pack™ Power Transformer

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Triad PC Mount Split Pack™ Power Transformer is a versatile and efficient solution for PC board applications. With a unique split bobbin design, this transformer eliminates costly electrostatic shielding due to its nonconcentric winding. It features dual secondary configuration options and can be used with either single or dual primaries. With an electrical rating of 36.0 V·A and primary voltage options of 115V or 230V compatible with both 50Hz and 60Hz frequencies, this transformer delivers reliable performance and precise power distribution. The Hi-pot tested design ensures safety and accuracy, making it an ideal choice for a wide range of applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

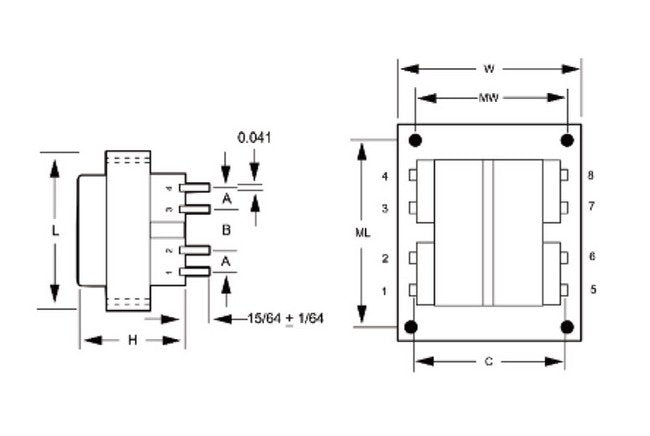

Product Specifications

Specifications Dimension A
0.40 in
Specifications Dimension B
0.40 in
Specifications Dimension C
1.850 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1 9/16 in
Specifications Length L
2 5/8 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
8
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
28.0 V at 1.3 A
Specifications Secondary Voltage In Series
56.0 V CT at 0.65 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
1.10 lb
Specifications Width W
2 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
