Triad PC Mount Split Pack™ Power Transformer

Triad PC Mount Split Pack™ Power Transformer

POW-84be4d

Versatile Triad PC Mount Split Packâ„¢ Transformer - Ideal for PC board applications with dual primary options & TUV approval.

$29.99
$29.99
Sale

Initiate Order

Triad PC Mount Split Pack™ Power Transformer

Triad PC Mount Split Pack™ Power Transformer

$29.99

Quantity: 1

Claim Your Seller Account

Triad PC Mount Split Pack™ Power Transformer

Triad PC Mount Split Pack™ Power Transformer

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Triad PC Mount Split Pack™ Class 2/3 Power Transformer is a versatile solution for PC board applications. Featuring a split bobbin design with nonconcentric winding, this transformer eliminates costly electrostatic shielding with its low capacitive coupling. With dual primary configuration options, hi-pot tested at 4,250 VRMS, and TUV approval, it ensures reliable performance. Primary voltages include 115 V and 230 V, meeting industry standards for Federal procurement, GSA requirements, and FAR compliance factors.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0
TUV Approved

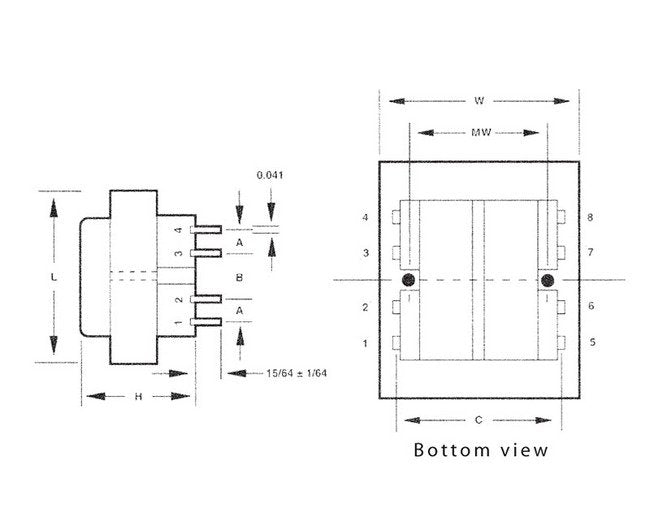

Specifications Dimension A
0.265 in
Specifications Dimension B
0.265 in
Specifications Dimension C
1.200 in
Specifications Dimension D
0.041 in
Specifications Dimension E
0.020 in
Specifications Dimension F
0.236 in
Specifications Electrical Rating
1.1 V·A
Specifications Height H
1.130 in
Specifications Length L
1.417 in
Specifications Number Of Pins
8
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
24.0 V at 0.046 A
Specifications Secondary Voltage In Series
48.0 V CT at 0.023 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
0.17 lb
Specifications Width W
1.142 in
Technical Notes 0

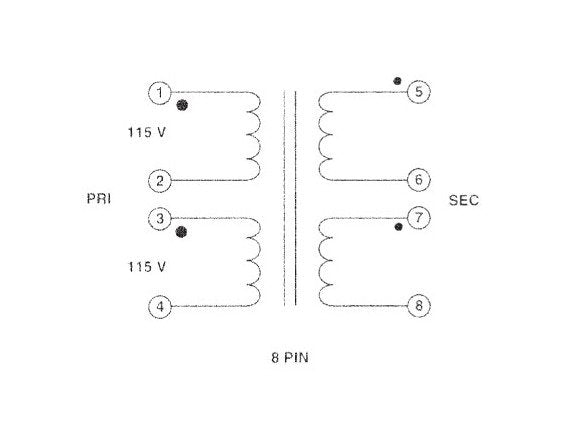

Hi-pot tested at 4,250 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
