Triad PC Mount Split Pack™ Power Transformers

Triad PC Mount Split Pack™ Power Transformers

POW-31e427

Versatile Triad PC Mount Transformers for reliable PC board applications. Nonconcentric winding, dual secondary options, and high-quality performance.

$29.99
$29.99
Sale

Initiate Order

Triad PC Mount Split Pack™ Power Transformers

Triad PC Mount Split Pack™ Power Transformers

$29.99

Quantity: 1

Claim Your Seller Account

Triad PC Mount Split Pack™ Power Transformers

Triad PC Mount Split Pack™ Power Transformers

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Triad PC Mount Split Pack™ Power Transformers offer unmatched versatility for PC board applications. With nonconcentric winding and dual secondary configuration options, these transformers eliminate the need for costly electrostatic shielding. Hi-pot tested and featuring precise winding, these transformers ensure reliable performance. Perfect for both consumer and institutional buyers, these transformers meet strict industry standards for quality and durability.

Product Specifications

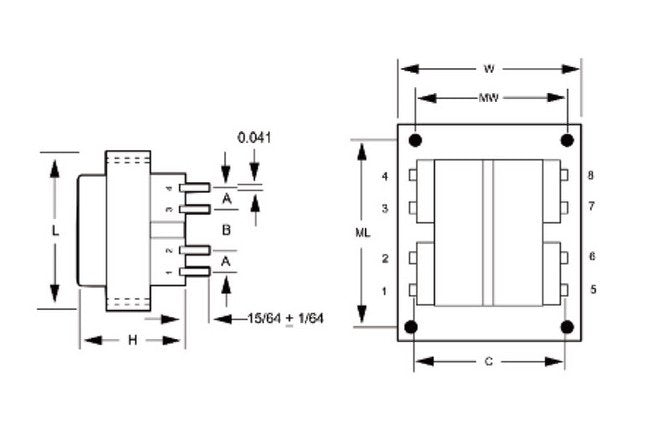

Specifications Dimension A
0.40 in
Specifications Dimension B
0.40 in
Specifications Dimension C
1.850 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1 9/16 in
Specifications Length L
2 5/8 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
8
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
14.0 V at 2.6 A
Specifications Secondary Voltage In Series
28.0 V CT at 1.3 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
1.10 lb
Specifications Width W
2 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
