Triad PC Mount Split Pack™ Power Transformers

Triad PC Mount Split Pack™ Power Transformers

POW-f32858

Versatile Triad PC Mount Split Pack™ Power Transformer - Ideal for PC board apps, with dual secondary, single/dual primaries, and Hi-pot tested for reliability.

$49.99
$49.99
Sale

Initiate Order

Triad PC Mount Split Pack™ Power Transformers

Triad PC Mount Split Pack™ Power Transformers

$49.99

Quantity: 1

Claim Your Seller Account

Triad PC Mount Split Pack™ Power Transformers

Triad PC Mount Split Pack™ Power Transformers

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Triad PC Mount Split Pack™ Power Transformer is a versatile solution for PC board applications, featuring a split bobbin winding that eliminates costly electrostatic shielding. With a dual secondary configuration and options for single or dual primaries, this transformer offers high electrical ratings of 36.0 V·A and has a center-tap transformer contact type. It is Hi-pot tested at 2,500 VRMS for reliability and precision. Designed with specific dimensions for easy mounting and featuring primary voltage options of 115 V | 230 V, this transformer is suitable for diverse applications in institutional and government settings.

Product Specifications

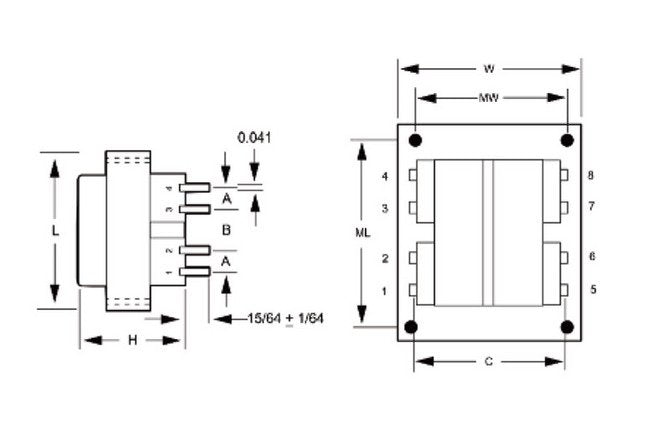

Specifications Dimension A
0.40 in
Specifications Dimension B
0.40 in
Specifications Dimension C
1.850 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1 9/16 in
Specifications Length L
2 5/8 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
8
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
24.0 V at 1.5 A
Specifications Secondary Voltage In Series
48.0 V CT at 0.75 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
1.10 lb
Specifications Width W
2 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
