Triad PC Mount Split Pack™ Power Transformers

Triad PC Mount Split Pack™ Power Transformers

POW-604e79

Highly versatile and efficient PC Mount Split Pack™ Class 2/3 Power Transformers for reliable power transformation in PC board applications.

$49.99
$49.99
Sale

Initiate Order

Triad PC Mount Split Pack™ Power Transformers

Triad PC Mount Split Pack™ Power Transformers

$49.99

Quantity: 1

Claim Your Seller Account

Triad PC Mount Split Pack™ Power Transformers

Triad PC Mount Split Pack™ Power Transformers

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Triad PC Mount Split Pack™ Class 2/3 Power Transformers are the perfect solution for PC board applications, featuring a split bobbin design that eliminates costly electrostatic shielding. With primaries and secondaries side-by-side, these transformers offer low capacitive coupling for optimal performance. Available in dual secondary configurations, with single or dual primaries, these transformers are Hi-pot tested and include precise connection instructions for versatile use. Experience reliable power transformation with Triad's innovative design.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

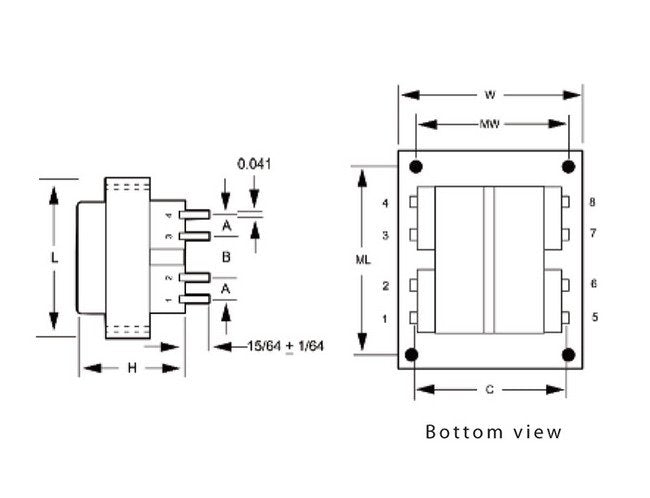

Specifications Dimension A
0.416 in
Specifications Dimension B
0.416 in
Specifications Dimension C
1.870 in
Specifications Dimension D
0.041 in
Specifications Dimension E
0.020 in
Specifications Dimension F
0.236 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1.634 in
Specifications Length L
2.638 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
6
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
5.0 V at 7.2 A
Specifications Secondary Voltage In Series
10.0 V CT at 3.6 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.10 lb
Specifications Width W
2.205 in
Technical Notes 0

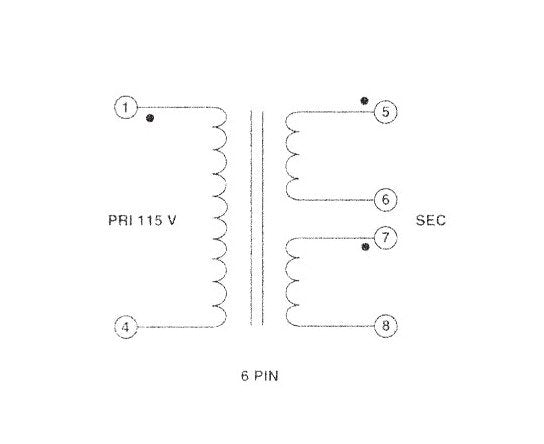

Hi-pot tested at 4,250 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
