Triad PC Mount Split Pack™ Power Transformers

Triad PC Mount Split Pack™ Power Transformers

POW-f27921

Versatile and efficient PC Mount Split Pack™ Power Transformers for high-performance PC board applications.

$49.99
$49.99
Sale

Initiate Order

Triad PC Mount Split Pack™ Power Transformers

Triad PC Mount Split Pack™ Power Transformers

$49.99

Quantity: 1

Claim Your Seller Account

Triad PC Mount Split Pack™ Power Transformers

Triad PC Mount Split Pack™ Power Transformers

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Triad PC Mount Split Pack™ Class 2/3 Power Transformers are the ideal solution for PC board applications, designed with a split bobbin configuration that eliminates costly electrostatic shielding. With dual secondary configuration options and a choice between single or dual primaries, these transformers offer high versatility and performance. Hi-pot tested at 4,250 VRMS, TUV approved, and designed for precise placement with PC terminal pin spacing, these transformers meet stringent quality and safety standards.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0
TUV Approved

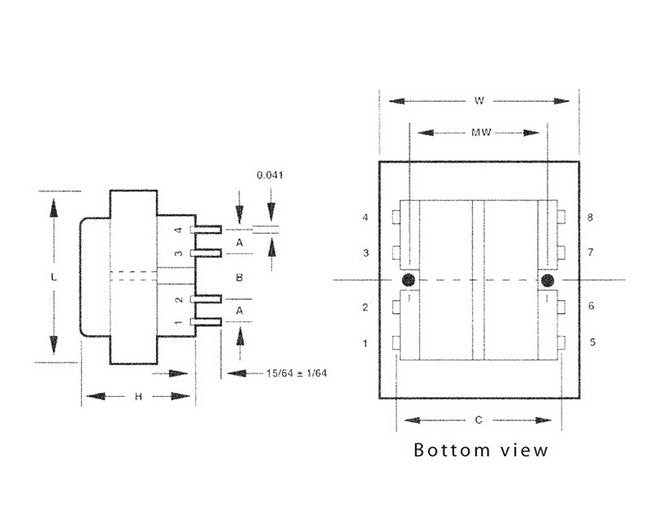

Specifications Dimension A
0.265 in
Specifications Dimension B
0.265 in
Specifications Dimension C
1.200 in
Specifications Dimension D
0.041 in
Specifications Dimension E
0.020 in
Specifications Dimension F
0.236 in
Specifications Electrical Rating
2.5 V·A
Specifications Height H
1.260 in
Specifications Length L
1.398 in
Specifications Number Of Pins
8
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
8.0 V at 0.3 A
Specifications Secondary Voltage In Series
16.0 V CT at 0.15 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
0.25 lb
Specifications Width W
1.201 in
Technical Notes 0

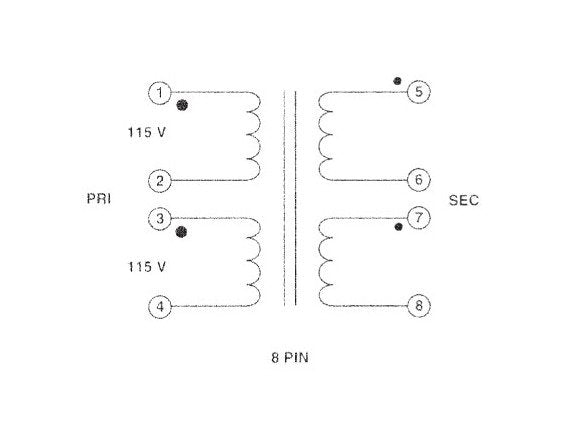

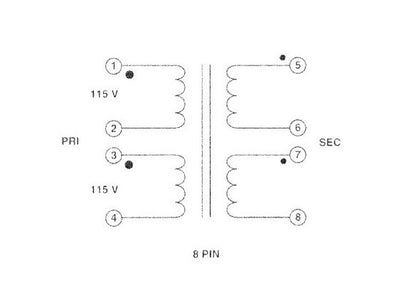

Hi-pot tested at 4,250 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
