Triad PC Mount Split Pack™ Power Transformers

Triad PC Mount Split Pack™ Power Transformers

POW-9e4b08

Versatile and efficient PC board transformers with unique nonconcentric winding for cost-effective, shield-free operation.

$49.99
$49.99
Sale

Initiate Order

Triad PC Mount Split Pack™ Power Transformers

Triad PC Mount Split Pack™ Power Transformers

$49.99

Quantity: 1

Claim Your Seller Account

Triad PC Mount Split Pack™ Power Transformers

Triad PC Mount Split Pack™ Power Transformers

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Triad PC Mount Split Pack™ Power Transformers offer unparalleled versatility for PC board applications. Featuring a nonconcentric winding design with primaries and secondaries positioned side-by-side, these transformers eliminate the need for costly electrostatic shielding. With dual secondary configuration options and single or dual primaries, these transformers provide exceptional electrical ratings, including 36.0 V·A electrical rating and a range of voltage and current options. The Hi-pot tested transformers are designed for precise installation with PC terminal pin spacing. Triad ensures quality and reliability in compliance with industry standards.

Product Specifications

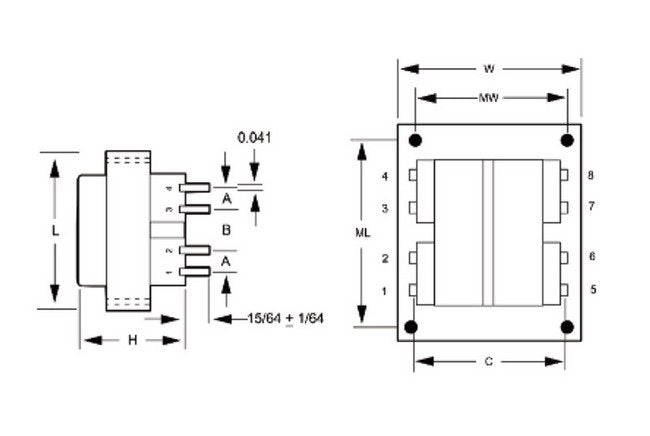

Specifications Dimension A
0.40 in
Specifications Dimension B
0.40 in
Specifications Dimension C
1.850 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1 9/16 in
Specifications Length L
2 5/8 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
6
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
10.0 V at 3.6 A
Specifications Secondary Voltage In Series
20.0 V CT at 1.8 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.10 lb
Specifications Width W
2 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
