Triad PC Mount Split Pack™ Transformers

Triad PC Mount Split Pack™ Transformers

POW-582b79

Versatile PC board power transformers with split bobbin winding, ideal for institutional applications.

$24.99
$24.99
Sale

Initiate Order

Triad PC Mount Split Pack™ Transformers

Triad PC Mount Split Pack™ Transformers

$24.99

Quantity: 1

Claim Your Seller Account

Triad PC Mount Split Pack™ Transformers

Triad PC Mount Split Pack™ Transformers

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Triad PC Mount Split Packâ„¢ Power Transformers are a versatile option for PC board applications. Featuring a split bobbin winding design, these transformers offer dual secondary configurations with single or dual primaries, eliminating the need for costly electrostatic shielding. With a robust construction and hi-pot testing at 2,500 VRMS, they ensure reliable performance. Ideal for institutional buyers needing compliant transformers for various applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications Dimension A
0.250 in
Specifications Dimension B
0.250 in
Specifications Dimension C
1.20 in
Specifications Electrical Rating
1.1 V·A
Specifications Height H
15/16 in
Specifications Length L
1 3/8 in
Specifications Number Of Pins
6
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
8.0 V at 0.14 A
Specifications Secondary Voltage In Series
16.0 V CT at 0.07 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.20 lb
Specifications Width W
1 1/8 in
Technical Notes 0

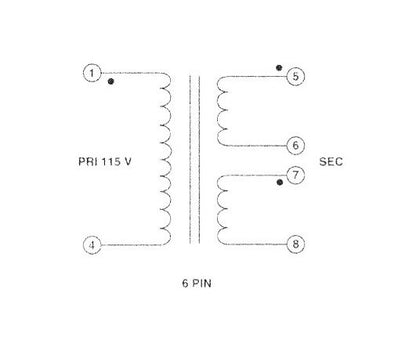

Hi-pot tested at 2,500 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
