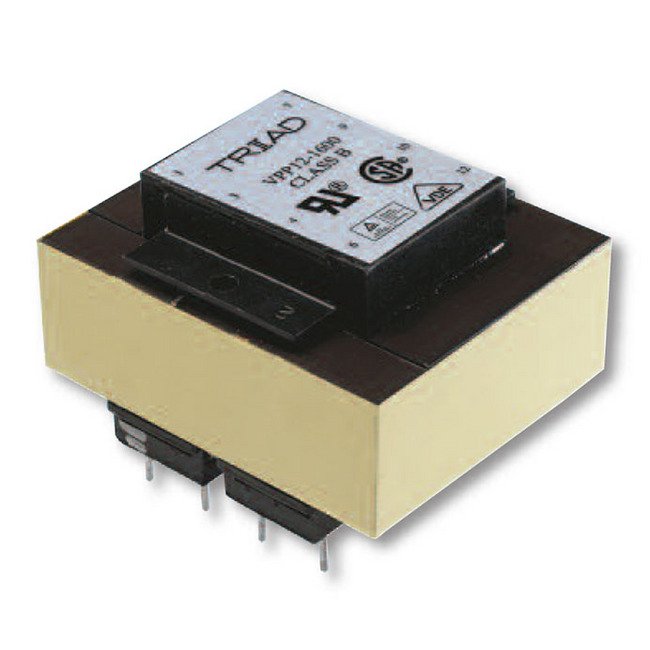

Triad PC Mount World Series Power Transformers
Triad PC Mount World Series Power Transformers
SKU:POW-6498ce
Highly isolated PC mount transformers with dual bobbin construction and UL-compliant materials. Meets international standards for versatile use.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Triad PC Mount World Series Power Transformers
$39.99
Quantity: 1
Claim Your Seller Account
Triad PC Mount World Series Power Transformers
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triad PC Mount World Series Power Transformers feature a dual bobbin construction with high temperature insulating shroud, exceeding UL flammability requirements. With very high isolation between primary and secondary windings, these transformers eliminate the need for electrostatic shielding due to reduced capacitance. Meeting CSA, IEC, TUV, and UL standards, they are suitable for universal applications. Ideal for institutions and government buyers requiring reliable and compliant power solutions.
Product Specifications
Note 0
Class 2/3 UL File: E65390

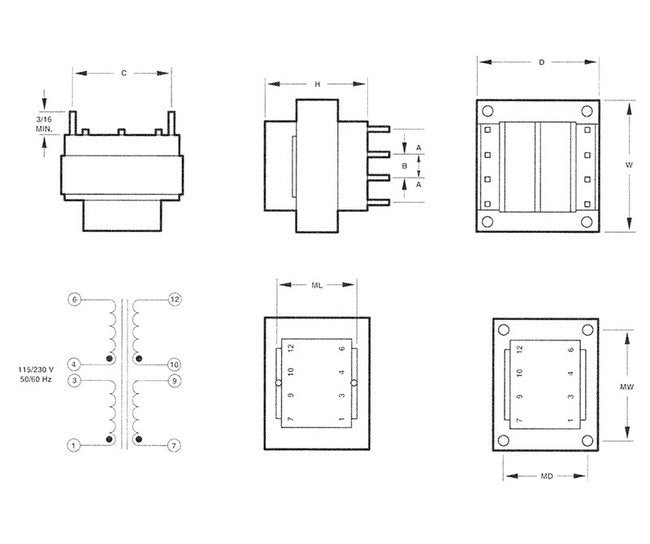

Specifications Depth D
1 5/16 in
Specifications Dimension A
0.200 in
Specifications Dimension B
0.250 in
Specifications Dimension C
1.000 in
Specifications Electrical Rating
2.5 V·A
Specifications Height H
1 1/8 in
Specifications Industry Standards
CSA | IEC | TUV | UL
Specifications Mounting Length
1 1/1 6 in
Specifications Pin Dimension
0.025 in²
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
6.3 V at 0.4 A
Specifications Secondary Series
12.6 V CT at 0.2 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.30 lb
Specifications Width W
1 5/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
