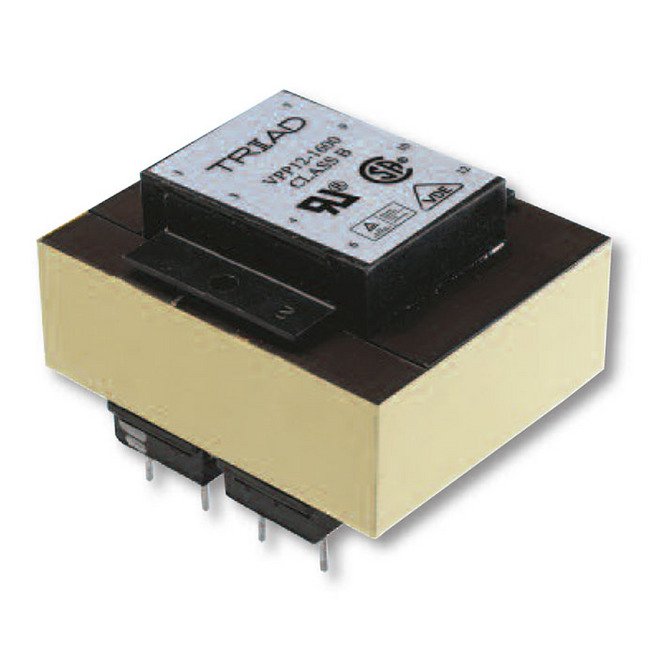

Triad PC Mount World Series Power Transformers
Triad PC Mount World Series Power Transformers
SKU:POW-8b0090
High-quality PC Mount World Series power transformers with dual bobbin construction, exceptional isolation, and universal standards compliance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Triad PC Mount World Series Power Transformers
$49.99
Quantity: 1
Claim Your Seller Account
Triad PC Mount World Series Power Transformers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triad PC Mount World Series™ Power Transformers are designed with a dual bobbin construction incorporating an insulating shroud made of high-temperature material that surpasses UL flammability requirements. These transformers offer exceptional isolation between primary and secondary windings and the core, eliminating the need for electrostatic shielding due to reduced capacitance. With ratings ranging from 2.5 VA to 56.0 VA, precise pin placement for through-hole PC board mounting, and compliance with U.S. and international standards such as CSA, IEC, TUV, and UL, these transformers are ideal for a universal range of applications.
Product Specifications
Note 0
Class 2/3 UL File: E65390

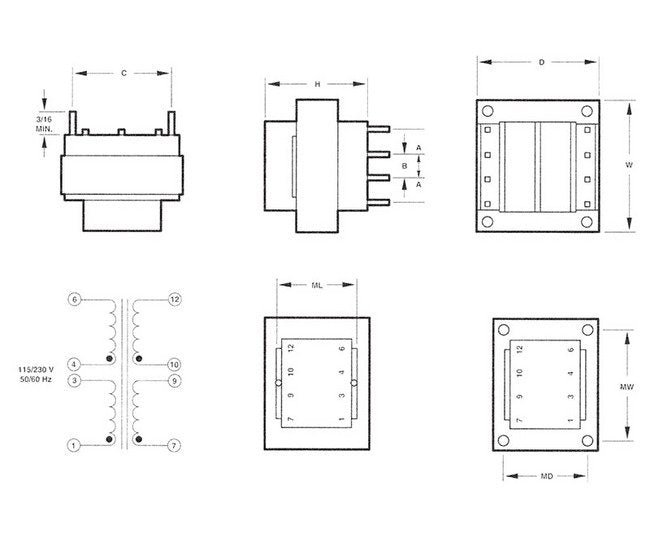

Specifications Depth D
2 3/16 in
Specifications Dimension A
0.550 in
Specifications Dimension B
0.275 in
Specifications Dimension C
1.680 in
Specifications Electrical Rating
30.0 V·A
Specifications Height H
1 9/16 in
Specifications Industry Standards
CSA | IEC | TUV | UL
Specifications Mounting Depth
1 3/4 in
Specifications Mounting Width
2 3/16 in
Specifications Pin Dimension
0.045 in²
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
14.0 V at 2.12 A
Specifications Secondary Series
28.0 V CT at 1.06 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.20 lb
Specifications Width W
2 5/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
