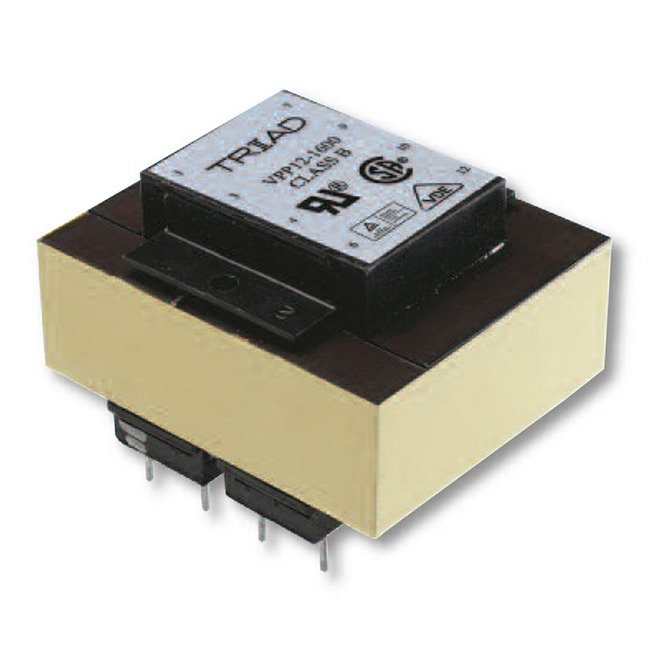

The Triad PC Mount World Series™ Power Transformers are expertly crafted with a dual bobbin construction featuring an insulating shroud made of high-temperature material exceeding UL flammability requirements. These transformers ensure very high isolation between primary and secondary windings, eliminating the need for electrostatic shielding. With ratings ranging from 2.5 VA to 56.0 VA, these transformers offer dimensionally accurate pin placement for through-hole PC board mounting. Complying with U.S. and International standards like CSA, IEC, TUV, and UL, these transformers are universally applicable, making them ideal for various commercial and institutional applications.
Product Specifications
Note 0
Class 2/3 UL File: E65390

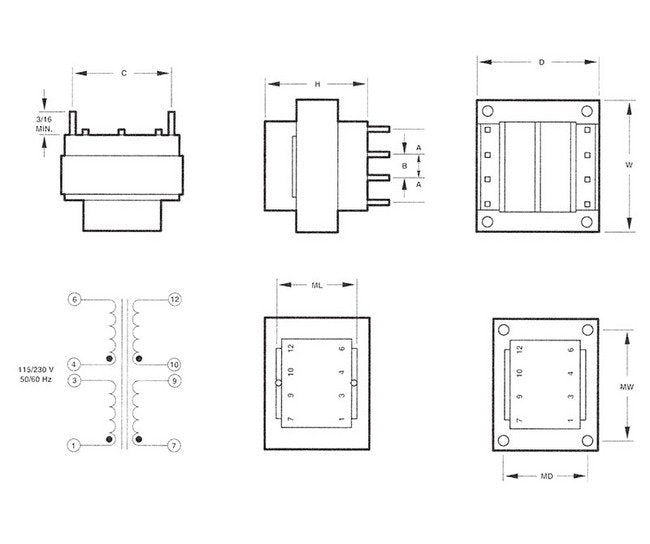

Specifications Depth D
2 1/2 in
Specifications Dimension A
0.600 in
Specifications Dimension B
0.300 in
Specifications Dimension C
1.900 in
Specifications Electrical Rating
56.0 V·A
Specifications Height H
1 13/16 in
Specifications Industry Standards
CSA | IEC | TUV | UL
Specifications Mounting Depth
2 in
Specifications Mounting Width
2 1/2 in
Specifications Pin Dimension
0.045 in²
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
12.0 V at 4.66 A
Specifications Secondary Series
24.0 V CT at 2.33 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.70 lb
Specifications Width W
3 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
