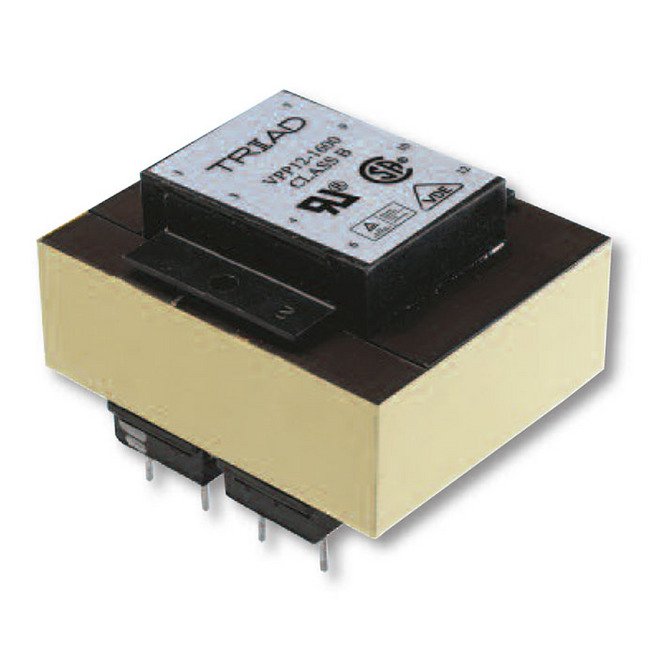

  • Triad PC Mount World Series™ Power Transformers - Image 2
1 2
Triad Magnetics →

Triad PC Mount World Series™ Power Transformers

Triad PC Mount World Series™ Power Transformers

POW-ea419d

Highly-isolated and flammability-compliant PC Mount World Seriesâ„¢ Power Transformers with precise pin placement for easy mounting.

$34.99
$34.99
Sale

Initiate Order

Triad PC Mount World Series™ Power Transformers

Triad PC Mount World Series™ Power Transformers

$34.99

Quantity: 1

Claim Your Seller Account

Triad PC Mount World Series™ Power Transformers

Triad PC Mount World Series™ Power Transformers

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Triad PC Mount World Seriesâ„¢ Power Transformers are designed with a dual bobbin construction using high-temperature materials that surpass UL flammability requirements. With very high isolation between primary and secondary windings, these transformers eliminate the need for electrostatic shielding. Available in various ratings and meeting U.S. and International standards such as CSA, IEC, TUV, and UL, these transformers offer universal application and precise pin placement for easy mounting on PC boards.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0
Class 2/3 UL File: E65390

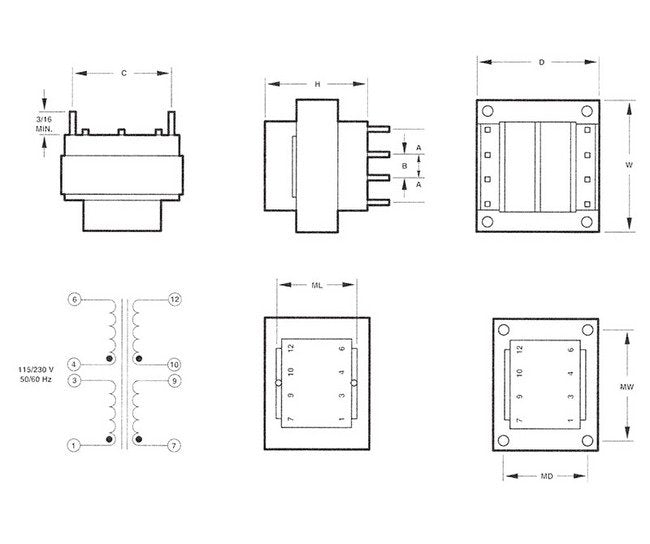

Specifications Depth D
1 9/16 in
Specifications Dimension A
0.200 in
Specifications Dimension B
0.400 in
Specifications Dimension C
1.140 in
Specifications Electrical Rating
10 V·A
Specifications Height H
1 3/8 in
Specifications Industry Standards
CSA | IEC | TUV | UL
Specifications Mounting Length
1 1/4 in
Specifications Pin Dimension
0.036 in²
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
14.0 V at 0.72 A
Specifications Secondary Series
28.0 V CT at 0.36 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.50 lb
Specifications Width W
1 7/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
