Triad PC Mount World Series™ Power Transformers - High Isolation & Dual Bobbin Design

Triad PC Mount World Series™ Power Transformers - High Isolation & Dual Bobbin Design

POW-d662e0

Reliable Triad PC Mount World Series™ Power Transformers - High isolation, dual bobbin design, UL & International standards compliant.

$45.99
$45.99
Sale

Initiate Order

Triad PC Mount World Series™ Power Transformers - High Isolation & Dual Bobbin Design

Triad PC Mount World Series™ Power Transformers - High Isolation & Dual Bobbin Design

$45.99

Quantity: 1

Claim Your Seller Account

Triad PC Mount World Series™ Power Transformers - High Isolation & Dual Bobbin Design

Triad PC Mount World Series™ Power Transformers - High Isolation & Dual Bobbin Design

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

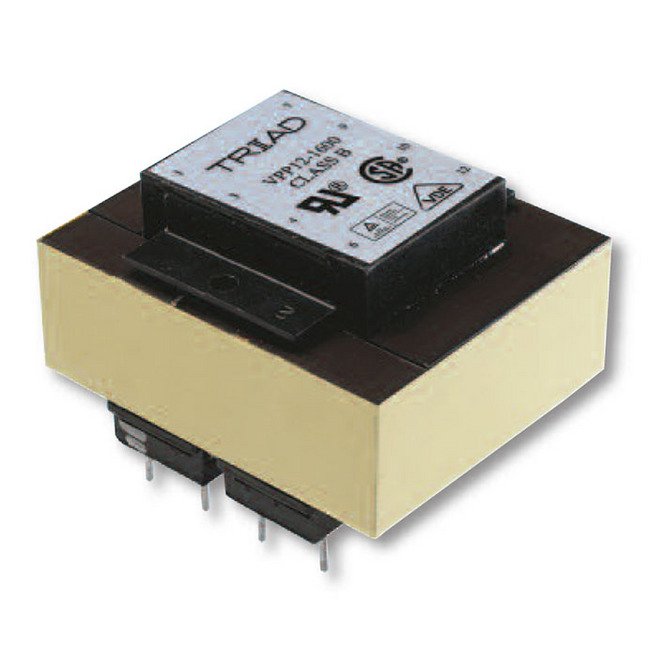

The Triad PC Mount World Series™ Power Transformers are engineered with a dual bobbin construction, featuring high-temperature insulating shroud materials that exceed UL flammability requirements. With exceptional isolation between primary and secondary windings, electrostatic shielding is not necessary due to reduced capacitance. These transformers, ranging from 2.5 VA to 56.0 VA, boast precise pin placement for through hole PC board mounting. They meet stringent U.S. and International standards such as CSA, IEC, TUV, and UL, ensuring universal applicability and reliable performance.

Product Specifications

Note 0
Class 2/3 UL File: E65390

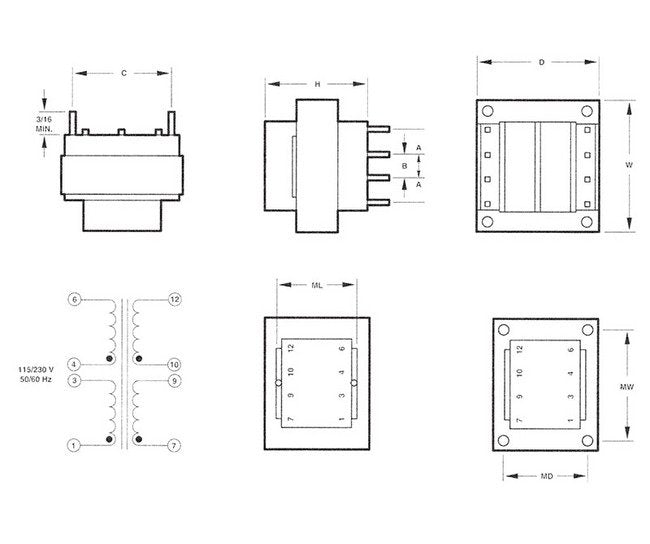

Specifications Depth D
2 3/16 in
Specifications Dimension A
0.550 in
Specifications Dimension B
0.275 in
Specifications Dimension C
1.680 in
Specifications Electrical Rating
30.0 V·A
Specifications Height H
1 9/16 in
Specifications Industry Standards
CSA | IEC | TUV | UL
Specifications Mounting Depth
1 3/4 in
Specifications Mounting Width
2 3/16 in
Specifications Pin Dimension
0.045 in²
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
8.0 V at 3.8 A
Specifications Secondary Series
16.0 V CT at 1.9 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.20 lb
Specifications Width W
2 5/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
