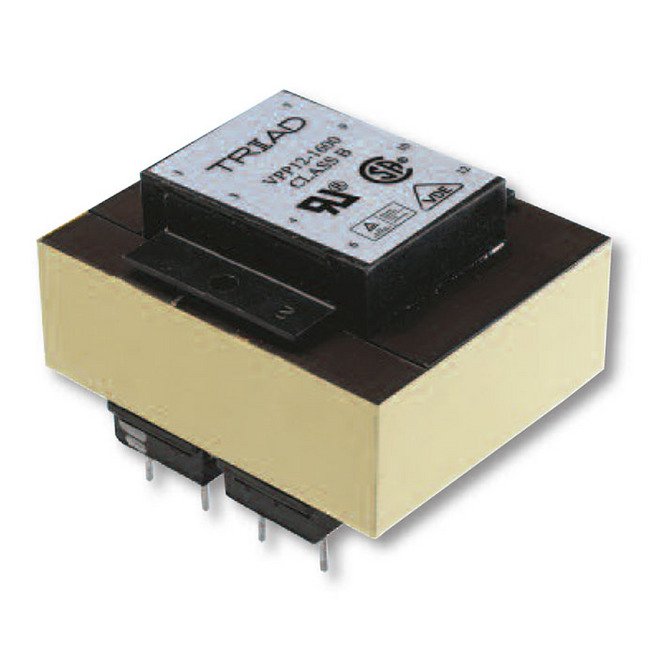

Triad PC Mount World Series™ Power Transformers - High Isolation, UL Certified

Triad PC Mount World Series™ Power Transformers - High Isolation, UL Certified

POW-3ebbef

High-isolation PC Mount transformers with dual bobbin construction, UL certified, ideal for diverse applications.

$49.99
$49.99
Sale

Initiate Order

Triad PC Mount World Series™ Power Transformers - High Isolation, UL Certified

Triad PC Mount World Series™ Power Transformers - High Isolation, UL Certified

$49.99

Quantity: 1

Claim Your Seller Account

Triad PC Mount World Series™ Power Transformers - High Isolation, UL Certified

Triad PC Mount World Series™ Power Transformers - High Isolation, UL Certified

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Triad PC Mount World Series™ Power Transformers feature a dual bobbin construction with high-temperature materials exceeding UL flammability requirements. These transformers provide very high isolation levels and dimensionally accurate pin placement for effortless through-hole PC board mounting. With ratings from 2.5 VA to 56.0 VA, these transformers meet U.S. and International standards such as CSA, IEC, TUV, and UL, making them universally applicable. The efficient dual bobbin design reduces capacitance, eliminating the need for electrostatic shielding while ensuring safe and reliable performance in various applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0
Class 2/3 UL File: E65390

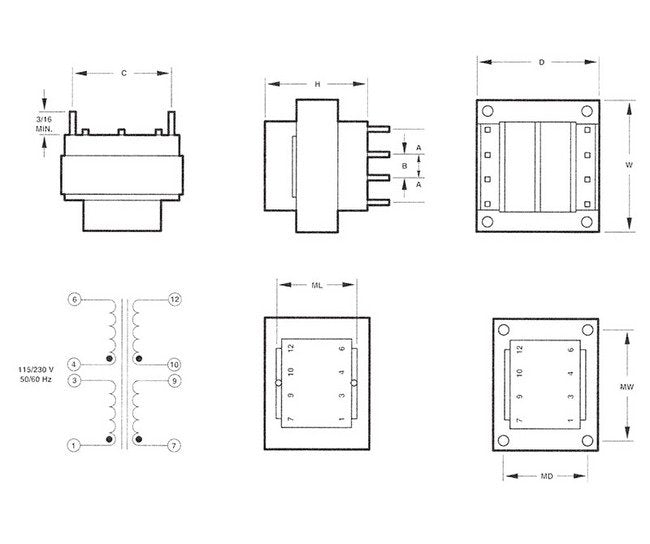

Specifications Depth D
2 3/16 in
Specifications Dimension A
0.550 in
Specifications Dimension B
0.275 in
Specifications Dimension C
1.680 in
Specifications Electrical Rating
30.0 V·A
Specifications Height H
1 9/16 in
Specifications Industry Standards
CSA | IEC | TUV | UL
Specifications Mounting Depth
1 3/4 in
Specifications Mounting Width
2 3/16 in
Specifications Pin Dimension
0.045 in²
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
18.0 V at 1.64 A
Specifications Secondary Series
36.0 V CT at 0.82 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.20 lb
Specifications Width W
2 5/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
