Triad Split Pack™ Class 2/3 PC Mount Power Transformers

Triad Split Pack™ Class 2/3 PC Mount Power Transformers

POW-e03c96

Versatile Triad Split Pack™ Class 2/3 Power Transformer for PC boards, with dual secondary configuration and TUV approval.

$34.99
$34.99
Sale

Initiate Order

Triad Split Pack™ Class 2/3 PC Mount Power Transformers

Triad Split Pack™ Class 2/3 PC Mount Power Transformers

$34.99

Quantity: 1

Claim Your Seller Account

Triad Split Pack™ Class 2/3 PC Mount Power Transformers

Triad Split Pack™ Class 2/3 PC Mount Power Transformers

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Triad Split Pack™ Class 2/3 Power Transformer is a highly versatile solution designed for PC board applications, featuring a split bobbin winding that eliminates the need for costly electrostatic shielding. With a dual secondary configuration, center tap contact type, and multiple primary voltage options, this transformer offers flexibility and reliability in electrical setups. Tested to meet TUV standards, it ensures high performance and safety in diverse power applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0
TUV Approved

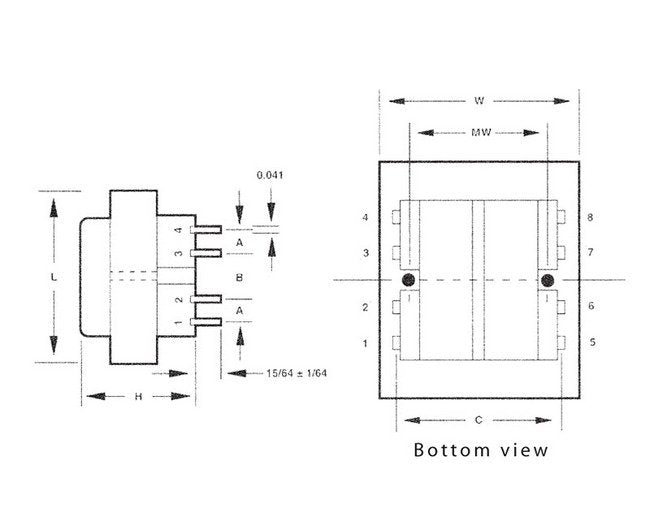

Specifications Dimension A
0.315 in
Specifications Dimension B
0.416 in
Specifications Dimension C
1.620 in
Specifications Dimension D
0.041 in
Specifications Dimension E
0.020 in
Specifications Dimension F
0.236 in
Specifications Electrical Rating
20.0 V·A
Specifications Height H
1.516 in
Specifications Length L
2.284 in
Specifications Mounting Width
1 1/2 in
Specifications Number Of Pins
8
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
6.3 V at 3.2 A
Specifications Secondary Voltage In Series
12.6 V CT at 1.6 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
0.80 lb
Specifications Width W
1.910 in
Technical Notes 0

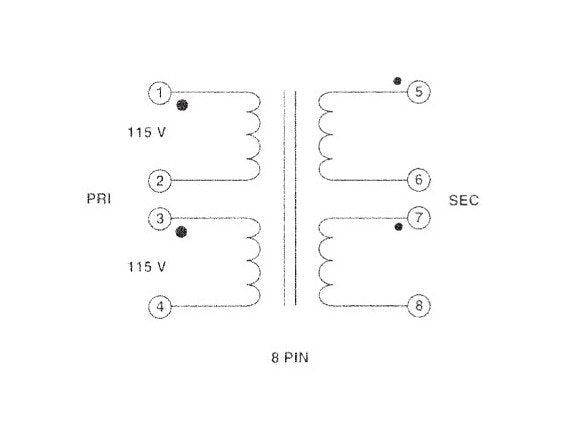

Hi-pot tested at 4,250 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
