Triad Split Pack⢠Class 2/3 Power Transformers
Triad Split Pack⢠Class 2/3 Power Transformers
SKU:POW-dfc3e8
Enhance PC board applications with Triad Split Packâ„¢ transformers for efficient power distribution and cost-saving benefits.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Triad Split Pack⢠Class 2/3 Power Transformers
$45.99
Quantity: 1
Claim Your Seller Account
Triad Split Pack⢠Class 2/3 Power Transformers
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triad Split Packâ„¢ Class 2/3 Power Transformers are expertly designed for PC board applications, offering unparalleled versatility for both consumer and institutional buyers. The innovative split bobbin winding eliminates costly electrostatic shielding, ensuring optimal performance. With a dual secondary configuration, single or dual primaries, and precise electrical ratings, these transformers deliver reliable power distribution. Hi-pot tested for safety and featuring PC terminal pin spacing for accuracy, they meet the rigorous standards of government procurement and industry-specific certifications. Trust Triad for cutting-edge technology and superior quality.
Product Specifications

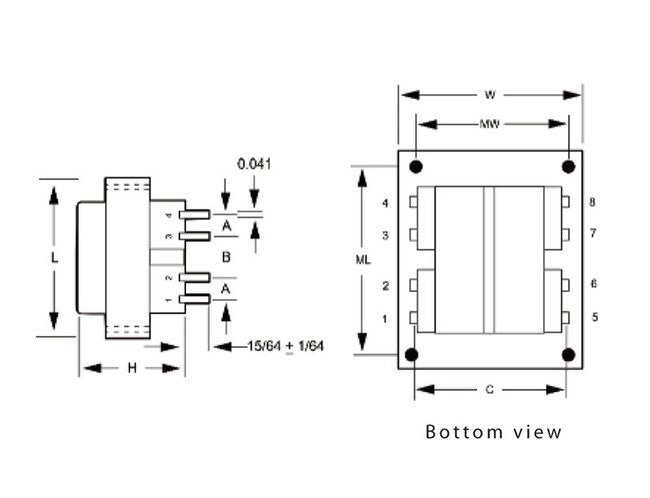

Specifications Dimension A
0.416 in
Specifications Dimension B
0.416 in
Specifications Dimension C
1.870 in
Specifications Dimension D
0.041 in
Specifications Dimension E
0.020 in
Specifications Dimension F
0.236 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1.634 in
Specifications Length L
2.638 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
6
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
6.3 V at 5.7 A
Specifications Secondary Voltage In Series
12.6 V CT at 2.85 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.10 lb
Specifications Width W
2.205 in
Technical Notes 0

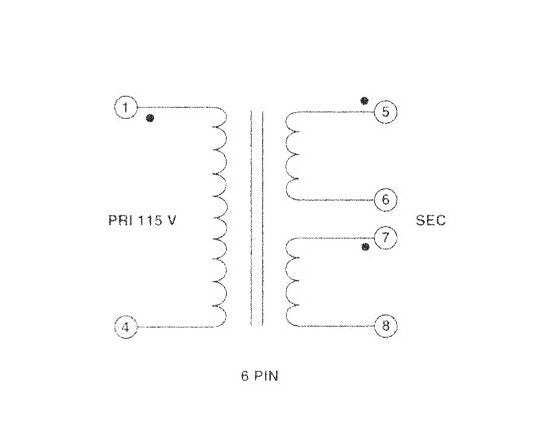

Hi-pot tested at 4,250 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
