Triad Split Pack™ Class 2/3 Power Transformers

Triad Split Pack™ Class 2/3 Power Transformers

POW-b1c455

Enhance PC board applications with versatile and safety-approved Split Packâ„¢ transformers.

$49.99
$49.99
Sale

Initiate Order

Triad Split Pack™ Class 2/3 Power Transformers

Triad Split Pack™ Class 2/3 Power Transformers

$49.99

Quantity: 1

Claim Your Seller Account

Triad Split Pack™ Class 2/3 Power Transformers

Triad Split Pack™ Class 2/3 Power Transformers

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Triad Split Packâ„¢ Class 2/3 Power Transformers are expertly designed for PC board applications, featuring a split bobbin winding that eliminates costly electrostatic shielding. With dual secondary configuration options and versatile primary connections, these transformers offer efficiency and precise electrical ratings. Tested for safety with TUV approval, they ensure reliable performance and ease of installation for various institutional and consumer applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0
TUV Approved

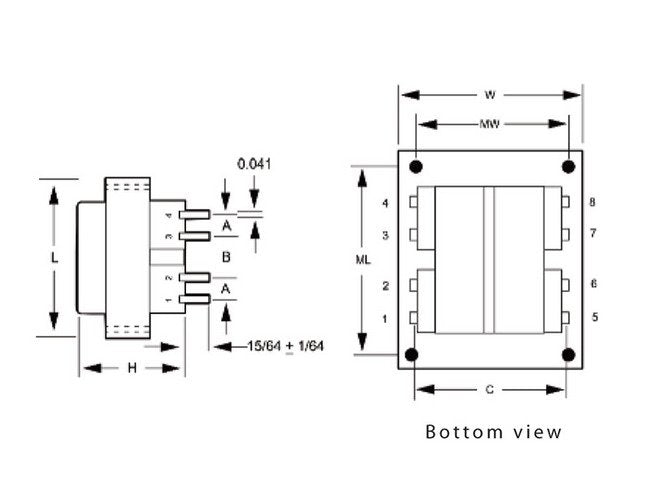

Specifications Dimension A
0.416 in
Specifications Dimension B
0.416 in
Specifications Dimension C
1.870 in
Specifications Dimension D
0.041 in
Specifications Dimension E
0.020 in
Specifications Dimension F
0.236 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1.634 in
Specifications Length L
2.638 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
8
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
5.0 V at 7.2 A
Specifications Secondary Voltage In Series
10.0 V CT at 3.6 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
1.10 lb
Specifications Width W
2.205 in
Technical Notes 0

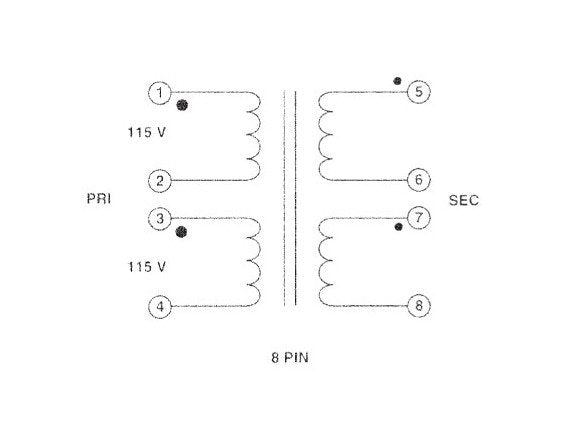

Hi-pot tested at 4,250 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
