Triad Switch Mode Power Supply - Wall Plug-In Transformer
Triad Switch Mode Power Supply - Wall Plug-In Transformer
SKU:WAL-b456b5
Efficient and reliable Switch Mode Power Supply for electronics, meets EIAS 2007 energy efficiency requirements.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Triad Switch Mode Power Supply - Wall Plug-In Transformer
$29.99
Quantity: 1
Claim Your Seller Account
Triad Switch Mode Power Supply - Wall Plug-In Transformer
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

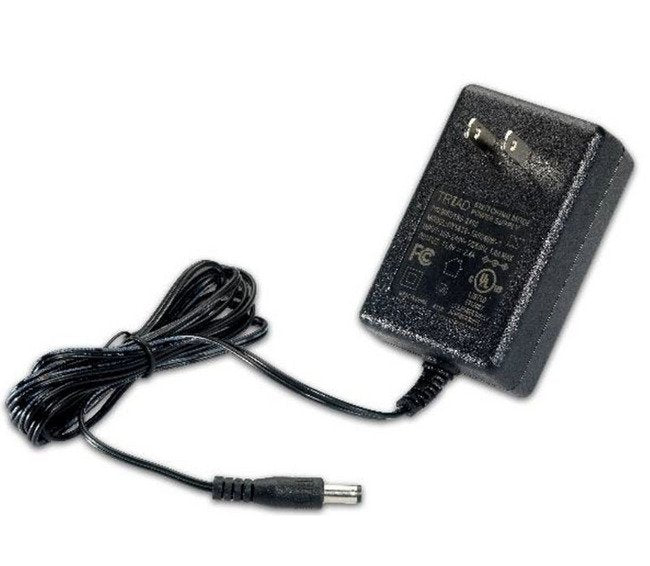

The Triad Switch Mode Power Supply offers efficient and reliable power for your electronic devices. With a compact design, it eliminates the need for internal cooling devices, reducing noise levels and ensuring safe, regulated power output. This power supply meets EIAS 2007 energy efficiency requirements, providing a durable and secure solution for a wide range of applications. Additionally, its enclosed design prevents tampering and ensures long-term performance.
Product Specifications
Eisa 2007cec Compliance Eisa 2007cec Compliance
All WSU Power Supplies manufactured after February 10, 2016 will meet the minimum efficiency levels for direct operation as defined by DOE Docket Number EERE 2008-BT-STD-0005-0219. Triadâs level VI products will have date code no later than 1605 (YYWW) where 16 is the year and 05 is the 5th week of 2016. In accordance with DOE requirement the label will also contain the Roman numeral VI with a circle.
Electrical Specifications At 25 Degree Celsius C Temperature Alt
90 to 264 V
Electrical Specifications At 25 Degree Celsius C Temperature Ave
â¥82.39 %
Electrical Specifications At 25 Degree Celsius C Temperature Inp
<0.5 A
Electrical Specifications At 25 Degree Celsius C Temperature Lin
±5 %
Electrical Specifications At 25 Degree Celsius C Temperature Loa
±5 %
Electrical Specifications At 25 Degree Celsius C Temperature Max
150 mV
Electrical Specifications At 25 Degree Celsius C Temperature Not
Meets minimum level VI efficiency.
Electrical Specifications At 25 Degree Celsius C Temperature No
<100 mW
Environmental Specifications Non Condensing Humidity
5 to 95 %
Environmental Specifications Operating Temperature Range
0 to 40 ºC
Environmental Specifications Storage Temperature
-20 to 60 ºC
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Long Nominal Output Cord Length
5 ft | 18 AWG

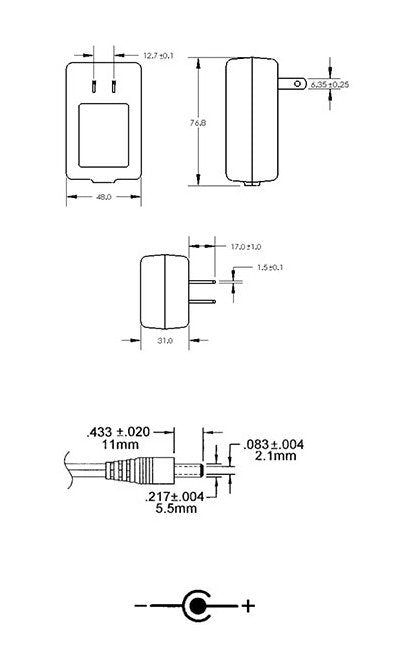

Output Plug Dimensions Inside Diameter Id
0.083±0.004 in | 2.1 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Reliability Specifications Direct Current Dc Dielectric Strength
4242 V
Reliability Specifications Leakage Current At 264 Vac
<0.25 mA
Reliability Specifications Maximum Dielectric Strength Hi Pot
5 mA
Reliability Specifications Warranty
5 years
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative. Upon printing, this document is considered âuncontrolledâ. Please contact Triad Magneticsâ website for the most current version.
Safety And Emi Safety And Emi
UL: 62368-1 Class II, Double InsulatedUL File Number: E345519 EMI standard: FCC part15 Subpart B, ICES-003 Issue 6, ANSI C63.4 2014Over voltage and short circuit protected
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Output Current Dc
2.5 A
Specifications Output Voltage Dc
5.9 V
Specifications Polarity Center
Positive
