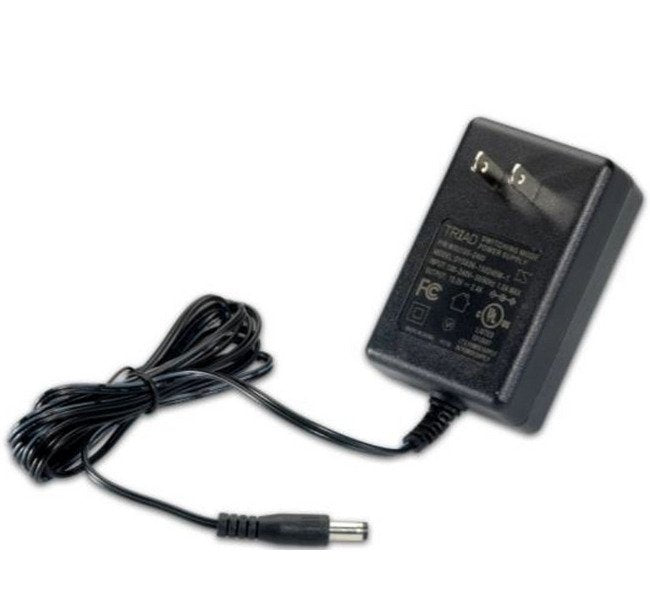

Triad Wall Plug-In Switch Mode Power Supply
Triad Wall Plug-In Switch Mode Power Supply
SKU:WAL-a1b3bc
Experience reliable power with Triad Switch Mode Wall Plug-Ins. Compact, efficient, and compliant with safety standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Triad Wall Plug-In Switch Mode Power Supply
$24.99
Quantity: 1
Claim Your Seller Account
Triad Wall Plug-In Switch Mode Power Supply
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triad Wall Plug-In Switch Mode Power Supply streamlines product design by eliminating the need for internal cooling devices, ensuring a quieter and more compact end product. With regulated voltage output, these power supplies offer safety and efficiency for a wide range of voltages and power levels. Built with a secure enclosure and meeting Level VI efficiency standards, the Triad Wall Plug-Ins are designed to provide reliable and consistent power in a compact package. With enhanced features like 5-year warranty, UL Class II safety certification, and RoHS compliance, this power supply is ideal for both consumer and institutional applications.
Product Specifications
Eisa 2007cec Compliance Eisa 2007cec Compliance
All WSU Power Supplies manufactured after February 10, 2016 will meet the minimum efficiency levels for direct operation as defined by DOE Docket Number EERE 2008-BT-STD-0005-0219. Triadâs level VI products will have date code no later than 1605 (YYWW) where 16 is the year and 05 is the 5th week of 2016. In accordance with DOE requirement the label will also contain the Roman numeral VI with a circle.
Electrical Specifications At 25 Degree Celsius C Temperature Alt
90 to 264 V
Electrical Specifications At 25 Degree Celsius C Temperature Ave
â¥82.39 %
Electrical Specifications At 25 Degree Celsius C Temperature Inp
<0.5 A
Electrical Specifications At 25 Degree Celsius C Temperature Lin
±5 %
Electrical Specifications At 25 Degree Celsius C Temperature Loa
±5 %
Electrical Specifications At 25 Degree Celsius C Temperature Max
150 mV
Electrical Specifications At 25 Degree Celsius C Temperature Not
Meets minimum level VI efficiency.
Electrical Specifications At 25 Degree Celsius C Temperature No
<100 mW
Environmental Specifications Non Condensing Humidity
5 to 95 %
Environmental Specifications Operating Temperature Range
0 to 40 ºC
Environmental Specifications Storage Temperature
-20 to 60 ºC
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Long Nominal Output Cord Length
5 ft | 18 AWG

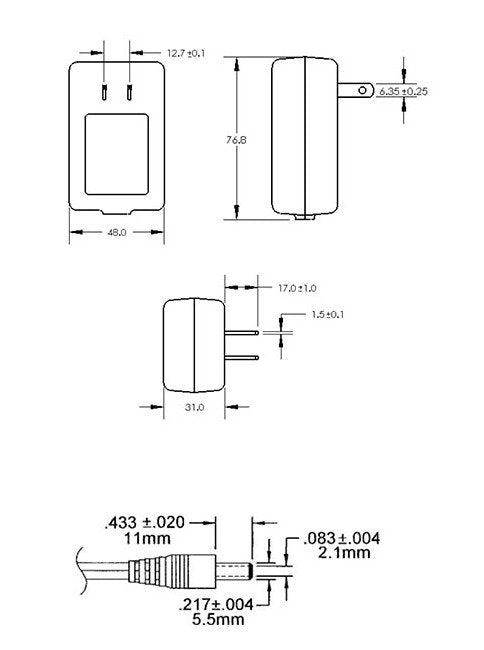

Output Plug Dimensions Inside Diameter Id
0.083±0.004 in | 2.1 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Reliability Specifications Direct Current Dc Dielectric Strength
4242 V
Reliability Specifications Leakage Current At 264 Vac
<0.25 mA
Reliability Specifications Maximum Dielectric Strength Hi Pot
5 mA
Reliability Specifications Warranty
5 years
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative. Upon printing, this document is considered âuncontrolledâ. Please contact Triad Magneticsâ website for the most current version.
Safety And Emi Safety And Emi
UL: 62368-1 Class II, Double InsulatedUL File Number: E345519 EMI standard: FCC part15 Subpart B, ICES-003 Issue 6, ANSI C63.4 2014Over voltage and short circuit protected
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Output Current Dc
2.5 A
Specifications Output Voltage Dc
5.9 V
Specifications Polarity Center
Negative
