The Chassis Mount Leaded World Series™ Power Transformers by Triad International feature a European-style split bobbin construction meeting International safety agency standards. These transformers offer reduced interwinding capacitance, eliminating the need for electrostatic shielding. With sizes ranging from 5 VA to 56 VA and 115 V / 230 V 50/60 Hz primary windings, they provide 3,500 V isolation between primary and secondary, and are designed with a 6 mm creepage distance primary to secondary, ensuring high performance and safety for various applications.
Product Specifications
Note 0

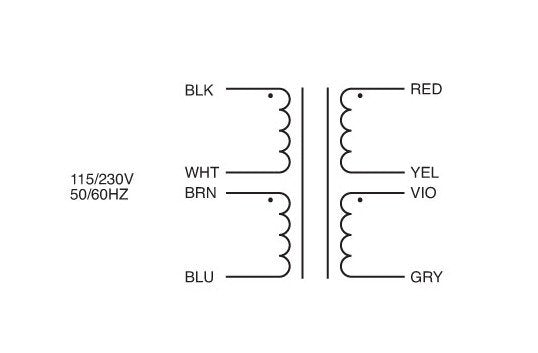

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independently
Specifications Case Type
X
Specifications Center Tap
N
Specifications Creepage Distance
6 mm
Specifications Depth D
2 1/8 in
Specifications Electrical Rating
25 V·A
Specifications Height H
1 15/16 in
Specifications Mounting Width
2 13/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel Connected
5.00 V | 5.000 A
Specifications Secondary Series Connected
10.0 V | 2.500 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.30 lb
Specifications Width W
3 1/4 in
Technical Notes 0
Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
