Triangle Positive Chipbreaker with Hole and Countersink, 0.198 / 0.206 in
Triangle Positive Chipbreaker with Hole and Countersink, 0.198 / 0.206 in
SKU:TUR-5e6a59
Enhance turning precision with the Triangle Positive Chipbreaker - 0.198 / 0.206 in thickness. Grade Availability: In Stock.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Triangle Positive Chipbreaker with Hole and Countersink, 0.198 / 0.206 in
$29.99
Quantity: 1
Claim Your Seller Account
Triangle Positive Chipbreaker with Hole and Countersink, 0.198 / 0.206 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triangle Positive Chipbreaker with Hole and Countersink offers precision and durability for turning processes. With a thickness of 0.198 / 0.206 inches, an Inscribed Circle of 0.517/0.523 inches, and a 60-degree angle, this chipbreaker ensures high-quality performance. The 82-degree countersink and precise hole dimensions of 0.176 / 0.182 inches enhance its functionality. Grade Availability: In Stock.

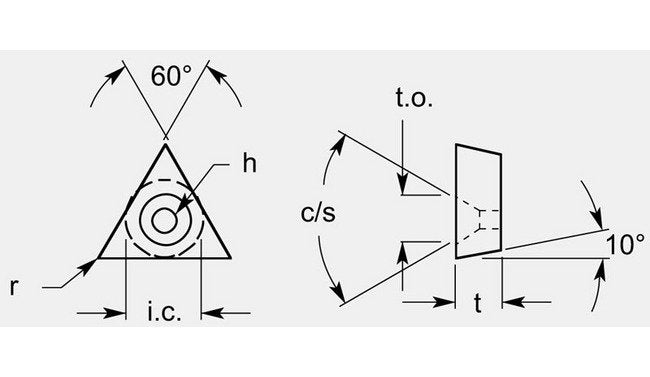

Product Specifications
Dimensional Specification Angle A
60 º
Dimensional Specification Cs
82 º
Dimensional Specification Hole
0.176 / 0.182 in
Dimensional Specification Inscribed Circle Ic
0.517/0.523 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.198 / 0.206 in
Dimensional Specification To
0.383 / 0.389 in
Grade Availability Grade Availability
In Stock
