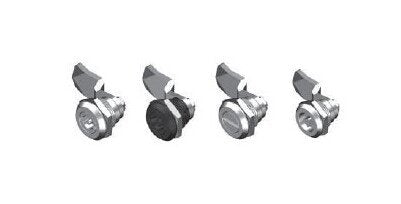

Triangular Polyamide Quarter Turn Lock with Die-Cast Zinc Housing

Name: Triangular Polyamide Quarter Turn Lock with Die-Cast Zinc Housing
Brand: All Electronics Hardware
SKU: IND-355875
Price: 24.99 USD
Availability: OutOfStock

SKU:IND-355875

Ensure secure door and flap locking with our Triangular Polyamide Quarter Turn Lock. Meets IP65 and NEMA 4 standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance security with our Triangular Polyamide Quarter Turn Lock featuring a sturdy Die-Cast Zinc Housing. Designed for easy latching and locking of doors and flaps, this lock offers versatility with a wide range of inserts and cams. With a black powder-coated or chrome-plated finish, it adds both functionality and style to your industrial access hardware needs. The Triangular insert with an M5 Screw Hole of 10mm meets high industry standards including Ingress Protection (IP65) and NEMA 4, ensuring durability and reliability in various environments.

Product Specifications

Specifications Industry Standards

Ingress Protection (IP65) | National Electrical Manufacturers Association (NEMA 4)

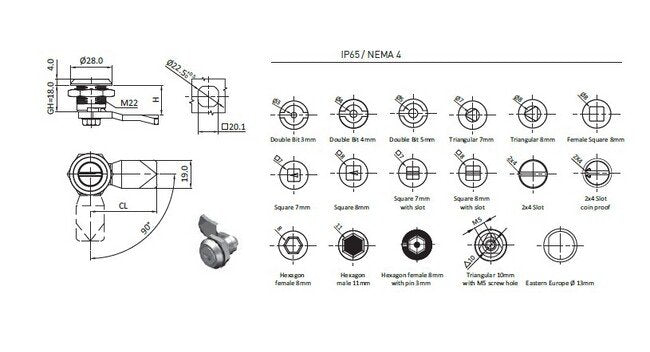

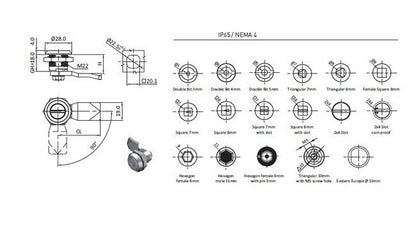

Specifications Insert Type

Triangular with M5 Screw Hole 10 Millimeter (mm)

Specifications Material

Polyamide (PA) Housing with Die-Cast Zinc

Specifications Special Features

Left | Right

Specifications Surface Finish

Black Powder Coated | Chrome Plated
