Trigon Negative Chipbreaker
Trigon Negative Chipbreaker
SKU:TUR-393f4b
Precision Trigon Negative Chipbreaker with Hole and Counterbore for high-performance turning. Thickness: 0.109-0.113in, Angle: 84°, Grade options available.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Trigon Negative Chipbreaker
$49.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Chipbreaker
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Trigon Negative Chipbreaker with Hole and Counterbore is a precision-engineered turning blank designed for high-performance applications. With a thickness range of 0.109 to 0.113 inches, an Inscribed Circle of 0.248 to 0.254 inches, and an optimal cutting Angle of 84 degrees, this chipbreaker ensures exceptional cutting efficiency and accuracy. The integrated Hole and Counterbore, measuring 0.104 to 0.108 inches and 0.142 to 0.146 inches respectively, enhance chip evacuation and surface finish. Available in various grades upon request, this chipbreaker is engineered to meet the rigorous demands of both consumer and institutional/government buyers.

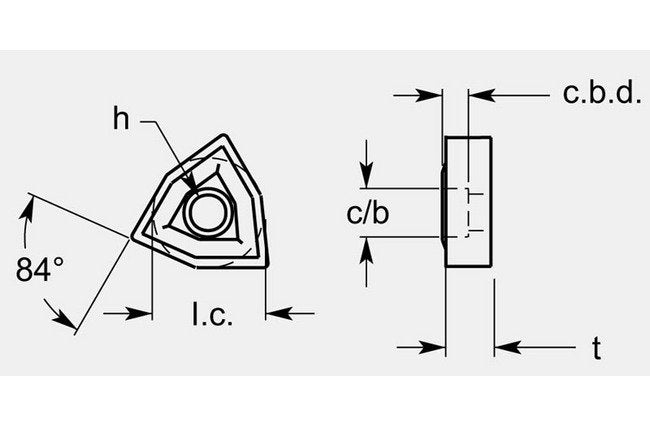

Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.142 / 0.146 in
Dimensional Specification Cbd
0.061 in
Dimensional Specification Hole
0.104 / 0.108 in
Dimensional Specification Inscribed Circle Ic
0.248/0.254 in
Dimensional Specification Thickness T
0.109 / 0.113 in
Grade Availability Grade Availability
Available on Request
