Trigon Negative Chipbreaker 0.387-0.393 in
Trigon Negative Chipbreaker 0.387-0.393 in
SKU:TUR-49cc25
Optimize precision turning with our Trigon Negative Chipbreaker, 0.387-0.393 in thickness and 90-degree angle. Custom grades available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Trigon Negative Chipbreaker 0.387-0.393 in
$29.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Chipbreaker 0.387-0.393 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Trigon Negative Chipbreaker offers precision machining with a thickness range of 0.387-0.393 inches, inscribed circle of 1.120-1.130 inches, and a 3/64-inch radius. Crafted for turning blanks, its 90-degree angle ensures optimal performance. Grade availability can be tailored to specific needs with options upon request.

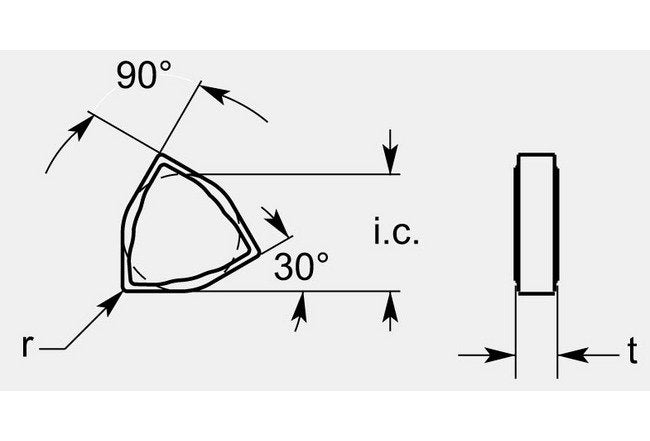

Product Specifications
Dimensional Specification Angle A
90 º
Dimensional Specification Inscribed Circle Ic
1.120/1.130 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.387 / 0.393 in
Grade Availability Grade Availability
Available on Request
