Trigon Negative Chipbreaker 0.390/0.400 in
Trigon Negative Chipbreaker 0.390/0.400 in
SKU:TUR-acd944
Enhance turning precision with the Trigon Negative Chipbreaker at 0.390/0.400 inches thickness. Ideal for a multitude of applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Trigon Negative Chipbreaker 0.390/0.400 in
$29.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Chipbreaker 0.390/0.400 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

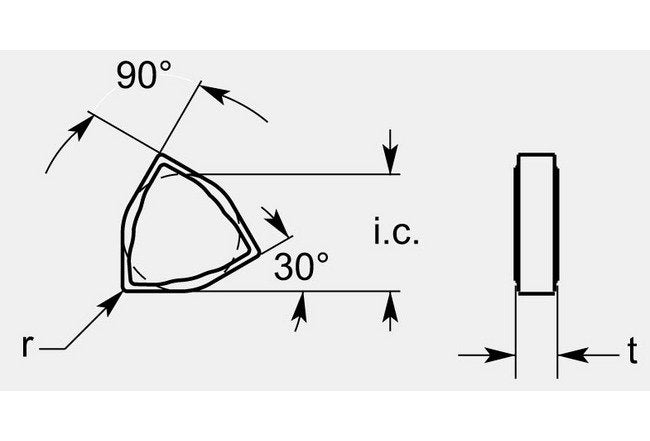

The Trigon Negative Chipbreaker boasts a thickness of 0.390/0.400 inches, an inscribed circle of 1.120/1.130 inches, a radius of 3/64 inches, and a 90-degree angle. Crafted for precision turning tasks, this chipbreaker ensures optimal performance and durability. Suitable for a wide range of applications, it meets stringent institutional procurement standards, making it a reliable choice for government and industrial use.
Product Specifications
Dimensional Specification Angle A
90 º
Dimensional Specification Inscribed Circle Ic
1.120/1.130 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.390 / 0.400 in
Grade Availability Grade Availability
Available on Request
