Trigon Negative Chipbreaker with Hole, 0.132/0.138 in Thickness
Trigon Negative Chipbreaker with Hole, 0.132/0.138 in Thickness
SKU:TUR-2706f9
Precision Utility Trigon - 0.132/0.138 in Thickness, Grade Options Available on Request. Ideal for Turning Blanks.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Trigon Negative Chipbreaker with Hole, 0.132/0.138 in Thickness
$39.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Chipbreaker with Hole, 0.132/0.138 in Thickness
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

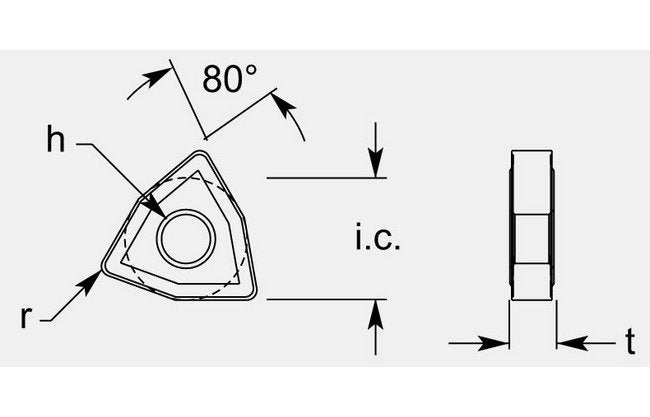

The Utility Trigon Negative Chipbreaker with Hole is designed for precision turning operations, featuring a thickness of 0.132 to 0.138 inches. With an inscribed circle of 0.372 to 0.378 inches, a 1/16-inch radius, and an 80-degree angle, this chipbreaker ensures high-performance machining. The incorporated hole of 0.147 to 0.153 inches allows for efficient chip evacuation. Grade availability can be customized upon request, meeting diverse industrial requirements.
Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.147 / 0.153 in
Dimensional Specification Inscribed Circle Ic
0.372/0.378 in
Dimensional Specification Radius R
1/16 in
Dimensional Specification Thickness T
0.132 / 0.138 in
Grade Availability Grade Availability
Available on Request
