The Trigon Negative Chipbreaker with Hole and Counterbore in 0.109/0.113 inch thickness is a high-precision turning blank designed to meet the stringent requirements of industrial machining. Crafted with an 84-degree angle for optimal performance, it features an Inscribed Circle ranging from 0.248 to 0.254 inches, alongside a hole diameter of 0.103/0.109 inches and Counterbore dimensions of 0.141/0.147 inches. With grade availability tailored to your needs, this chipbreaker guarantees precision and durability for your turning operations.

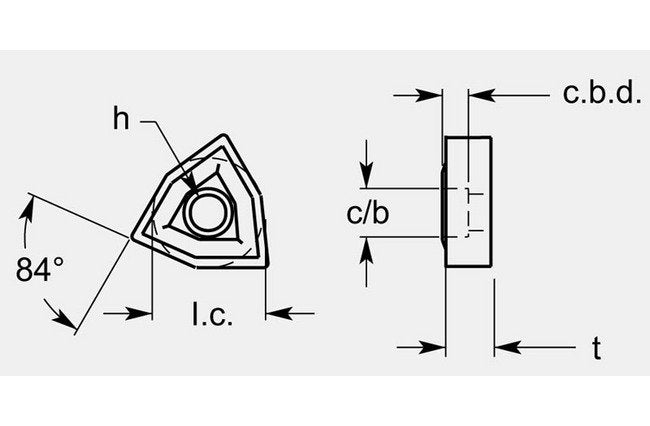

Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.141 / 0.147 in
Dimensional Specification Cbd
0.058 / 0.064 in
Dimensional Specification Hole
0.103 / 0.109 in
Dimensional Specification Inscribed Circle Ic
0.248/0.254 in
Dimensional Specification Thickness T
0.109 / 0.113 in
Grade Availability Grade Availability
Available on Request
