Trigon Negative Chipbreaker with Hole and Counterbore, 0.130/0.134 in
Trigon Negative Chipbreaker with Hole and Counterbore, 0.130/0.134 in
SKU:TUR-fbc712
Precision Trigon chipbreaker for turning applications, 0.130-0.134 in thickness, high-grade material.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Trigon Negative Chipbreaker with Hole and Counterbore, 0.130/0.134 in
$39.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Chipbreaker with Hole and Counterbore, 0.130/0.134 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Trigon Negative Chipbreaker with Hole and Counterbore, featuring a thickness of 0.130 to 0.134 inches, is a precision-engineered tool designed for turning applications. Its inscribed circle at 0.327 to 0.333 inches, angle at 84 degrees, and hole and counterbore dimensions ensure superior performance and accuracy. This chipbreaker is crafted to meet the highest industry standards, offering exceptional quality and reliability for both consumer and institutional buyers.

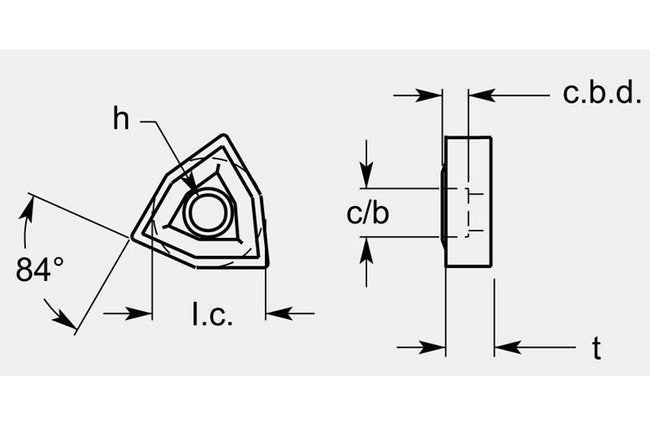

Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.141 / 0.147 in
Dimensional Specification Cbd
0.058 / 0.064 in
Dimensional Specification Hole
0.103 / 0.109 in
Dimensional Specification Inscribed Circle Ic
0.327/0.333 in
Dimensional Specification Thickness T
0.130 / 0.134 in
Grade Availability Grade Availability
Available on Request
